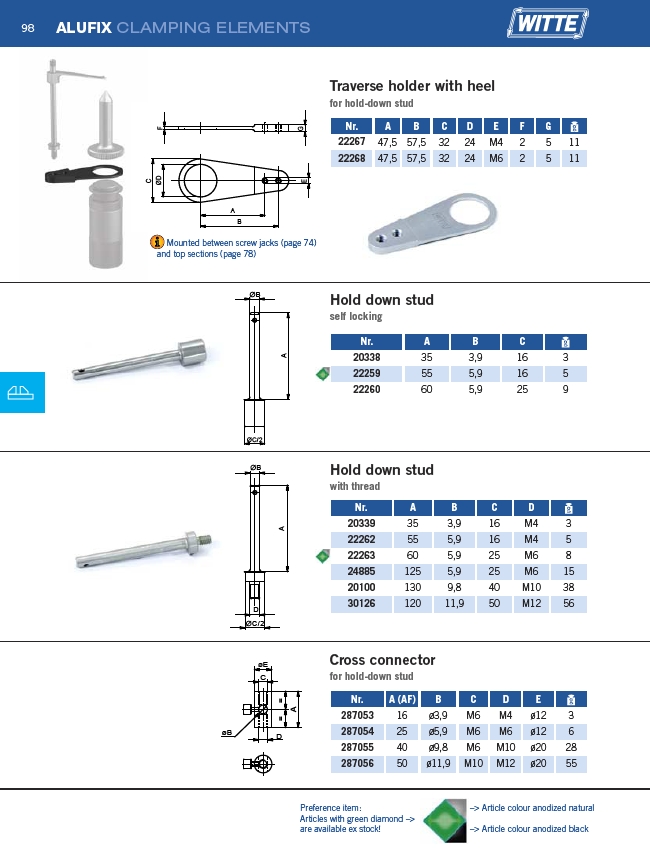

98
Nr. A B C D E F G
22267 47,5 57,5 32 24 M4 2 5 11
22268 47,5 57,5 32 24 M6 2 5 11
Hold down stud
self locking
Nr. A B C
20338 35 3,9 16 3
22259 55 5,9 16 5
22260 60 5,9 25 9
ALUFIX CLAMPING ELEMENTS
��
����
��
��
��
��
����
��������
��
����
��
��������
��
����
��
��
��
����
��
��
��
Hold down stud
with thread
Nr. A B C D
20339 35 3,9 16 M4 3
22262 55 5,9 16 M4 5
22263 60 5,9 25 M6 8
24885 125 5,9 25 M6 15
20100 130 9,8 40 M10 38
30126 120 11,9 50 M12 56
Nr. A (AF) B C D E
287053 16 ø3,9 M6 M4 ø12 3
287054 25 ø5,9 M6 M6 ø12 6
287055 40 ø9,8 M6 M10 ø20 28
287056 50 ø11,9 M10 M12 ø20 55
Mounted between screw jacks (page 74)
and top sections (page 78)
Traverse holder with heel
for hold-down stud
Cross connector
for hold-down stud
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
