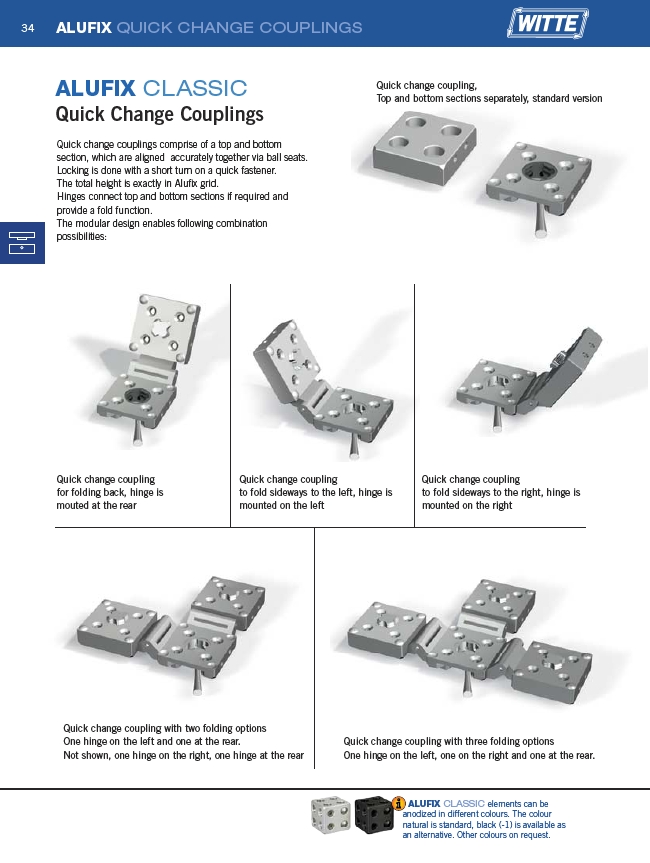

Quick change coupling,
Top and bottom sections separately, standard version
ALUFIX QUICK CHANGE COUPLINGS
ALUFIX CLASSIC
Quick Change Couplings
Quick change couplings comprise of a top and bottom
section, which are aligned accurately together via ball seats.
Locking is done with a short turn on a quick fastener.
The total height is exactly in Alufix grid.
Hinges connect top and bottom sections if required and
provide a fold function.
The modular design enables following combination
possibilities:
Quick change coupling
to fold sideways to the left, hinge is
mounted on the left
Quick change coupling
for folding back, hinge is
mouted at the rear
Quick change coupling
to fold sideways to the right, hinge is
mounted on the right
Quick change coupling with two folding options
One hinge on the left and one at the rear.
Not shown, one hinge on the right, one hinge at the rear
Quick change coupling with three folding options
One hinge on the left, one on the right and one at the rear.
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
