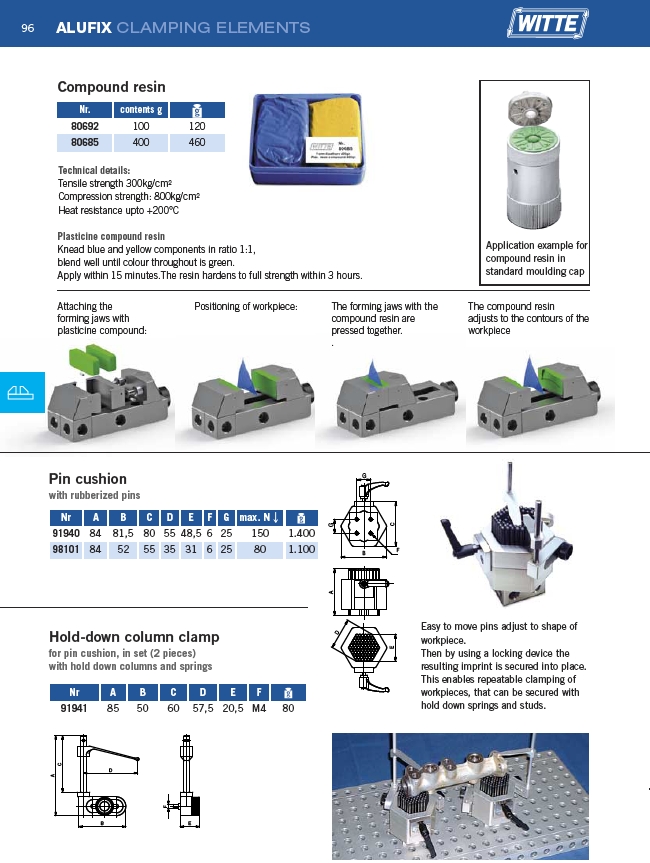

96
ALUFIX CLAMPING ELEMENTS
Compound resin
Technical details:
Tensile strength 300kg/cm2
Compression strength: 800kg/cm2
Heat resistance upto +200°C
Nr A B C D E F G max. N
91940 84 81,5 80 55 48,5 6 25 150 1.400
98101 84 52 55 35 31 6 25 80 1.100
Nr A B C D E F
91941 85 50 60 57,5 20,5 M4 80
��
��
��
��
��
��
Attaching the
forming jaws with
plasticine compound:
Positioning of workpiece:
The forming jaws with the
compound resin are
pressed together.
.
Application example for
compound resin in
stan dard moulding cap
The compound resin
adjusts to the contours of the
workpiece
Nr. contents g
80692 100 120
80685 400 460
Plasticine compound resin
Knead blue and yellow components in ratio 1:1,
blend well until colour throughout is green.
Apply within 15 minutes.The resin hardens to full strength within 3 hours.
Easy to move pins adjust to shape of
workpiece.
Then by using a locking device the
resulting imprint is secured into place.
This enables repeat able clamping of
workpieces, that can be secured with
hold down springs and studs.
Pin cushion
with rubberized pins
Hold-down column clamp
for pin cushion, in set (2 pieces)
with hold down columns and springs
