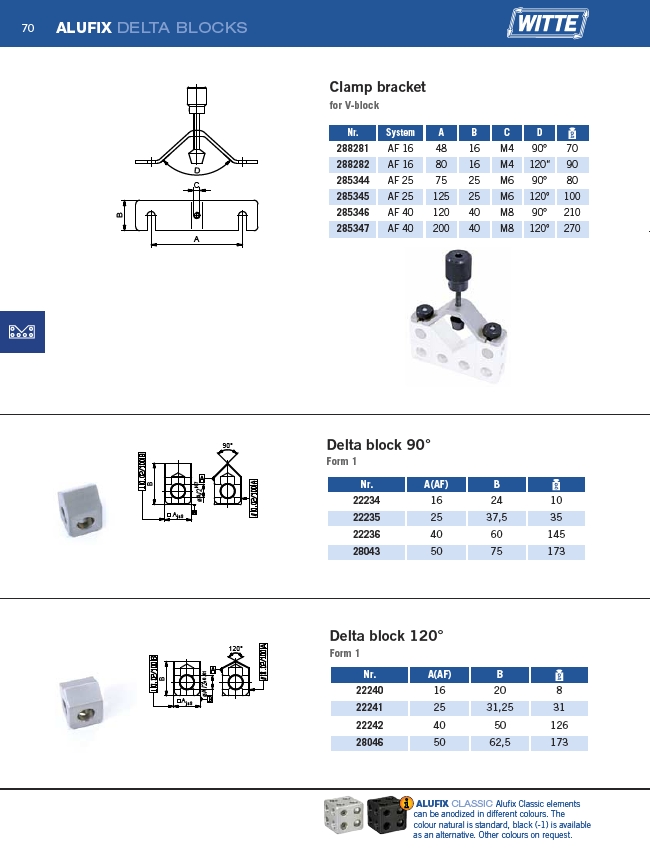

70
Clamp bracket
for V-block
Delta block 90°
Form 1
Nr. A(AF) B
22240 16 20 8
22241 25 31,25 31
22242 40 50 126
28046 50 62,5 173
��
������������������
�� ��������
��������
Nr. System A B C D
288281 AF 16 48 16 M4 90° 70
288282 AF 16 80 16 M4 120“ 90
285344 AF 25 75 25 M6 90° 80
285345 AF 25 125 25 M6 120° 100
285346 AF 40 120 40 M8 90° 210
285347 AF 40 200 40 M8 120° 270
��
��
��
������������
��
��������
������
Nr. A(AF) B
22234 16 24 10
22235 25 37,5 35
22236 40 60 145
28043 50 75 173
ALUFIX CLASSIC Alufix Classic elements
can be anodized in different colours. The
colour natural is standard, black (-1) is available
as an alternative. Other colours on request.
ALUFIX DELTA BLOCKS
Delta block 120°
Form 1
