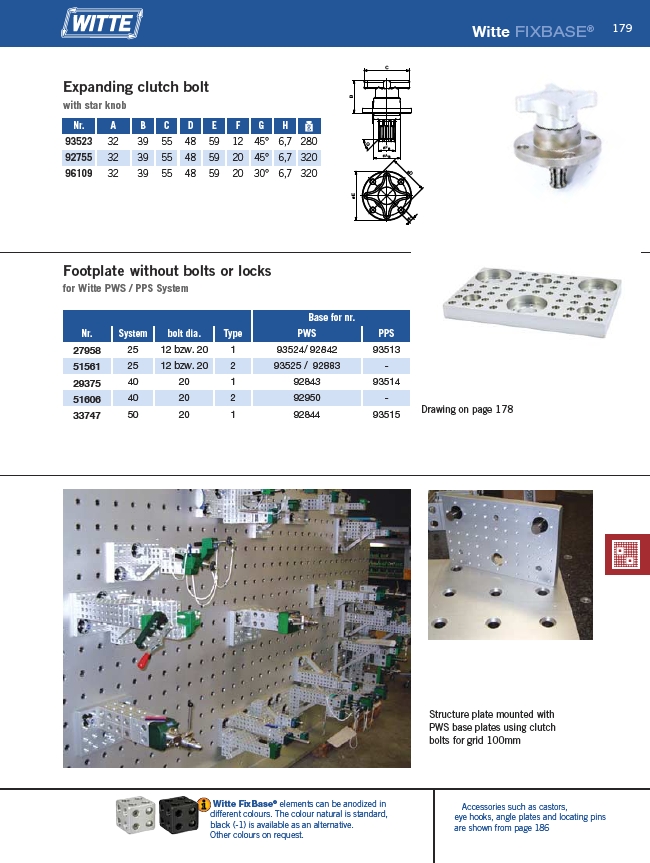

Witte FIXBASE® 179
��������
��������
��
��
��
����
����
����
Nr. A B C D E F G H
93523 32 39 55 48 59 12 45° 6,7 280
92755 32 39 55 48 59 20 45° 6,7 320
96109 32 39 55 48 59 20 30° 6,7 320
Drawing on page 178
Base for nr.
Footplate without bolts or locks
for Witte PWS / PPS System
Nr. System bolt dia. Type PWS PPS
27958 25 12 bzw. 20 1 93524/ 92842 93513
51561 25 12 bzw. 20 2 93525 / 92883 -
29375 40 20 1 92843 93514
51606 40 20 2 92950 -
33747 50 20 1 92844 93515
Structure plate mounted with
PWS base plates using clutch
bolts for grid 100mm
Expanding clutch bolt
with star knob
Witte FixBase® elements can be anodized in
different colours. The colour natural is standard,
black (-1) is available as an alternative.
Other colours on request.
Accessories such as castors,
eye hooks, angle plates and locating pins
are shown from page 186
