61
A
B
D±0,02
B±0,02
A

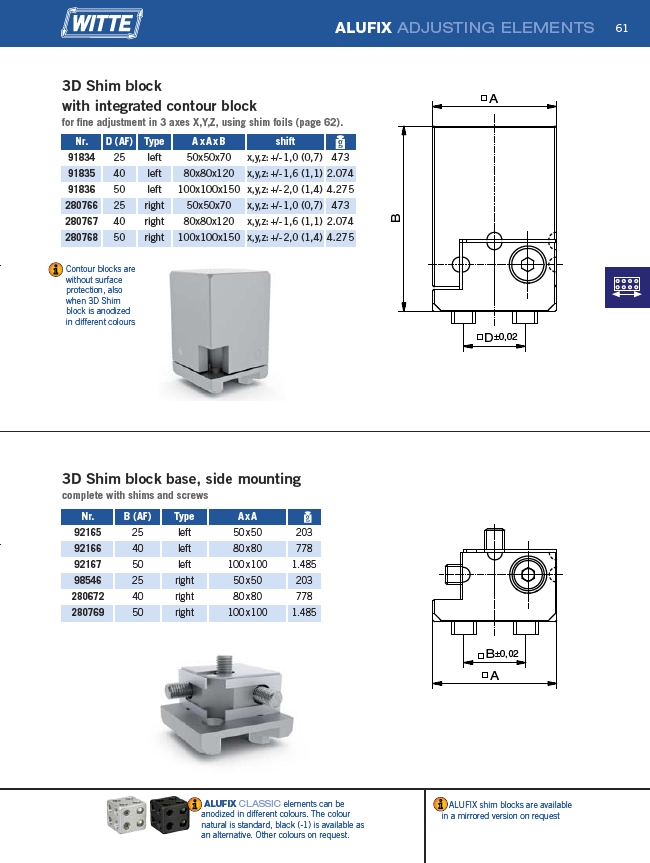

3D Shim block
with integrated contour block
for fine adjustment in 3 axes X,Y,Z, using shim foils (page 62).
Nr. D (AF) Type A x A x B shift
91834 25 left 50x50x70 x,y,z: +/- 1,0 (0,7) 473
91835 40 left 80x80x120 x,y,z: +/- 1,6 (1,1) 2.074
91836 50 left 100x100x150 x,y,z: +/- 2,0 (1,4) 4.275
280766 25 right 50x50x70 x,y,z: +/- 1,0 (0,7) 473
280767 40 right 80x80x120 x,y,z: +/- 1,6 (1,1) 2.074
280768 50 right 100x100x150 x,y,z: +/- 2,0 (1,4) 4.275
3D Shim block base, side mounting
complete with shims and screws
Nr. B (AF) Type A x A
92165 25 left 50 x 50 203
92166 40 left 80 x 80 778
92167 50 left 100 x 100 1.485
98546 25 right 50 x 50 203
280672 40 right 80 x 80 778
280769 50 right 100 x 100 1.485
ALUFIX ADJUSTING ELEMENTS
ALUFIX shim blocks are available
in a mirrored version on request
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Contour blocks are
without surface
protection, also
when 3D Shim
block is anodized
in different colours
