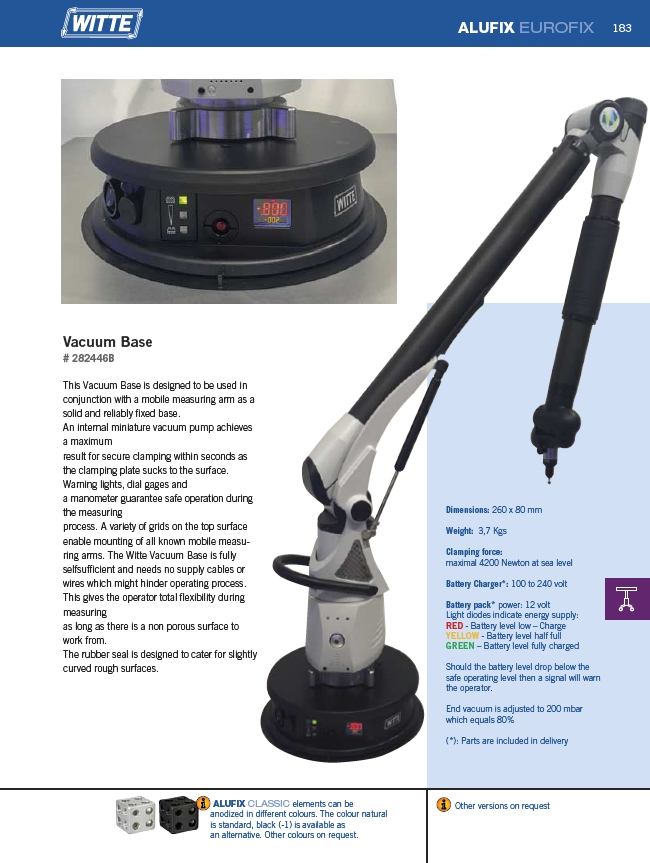

ALUFIX EUROFIX 183
Vacuum Base
# 282446B
This Vacuum Base is designed to be used in
conjunction with a mobile measuring arm as a
solid and reliably fixed base.
An internal miniature vacuum pump achieves
a maximum
result for secure clamping within seconds as
the clamping plate sucks to the surface.
Warning lights, dial gages and
a manometer guarantee safe operation during
the measuring
process. A variety of grids on the top surface
enable mounting of all known mobile measuring
arms. The Witte Vacuum Base is fully
selfsufficient and needs no supply cables or
wires which might hinder operating process.
This gives the operator total flexibility during
measuring
as long as there is a non porous surface to
work from.
The rubber seal is designed to cater for slightly
curved rough surfaces.
Dimensions: 260 x 80 mm
Weight: 3,7 Kgs
Clamping force:
maximal 4200 Newton at sea level
Battery Charger*: 100 to 240 volt
Battery pack* power: 12 volt
Light diodes indicate energy supply:
RED - Battery level low – Charge
YELLOW - Battery level half full
GREEN – Battery level fully charged
Should the battery level drop below the
safe operating level then a signal will warn
the operator.
End vacuum is adjusted to 200 mbar
which equals 80%
(*): Parts are included in delivery
ALUFIX CLASSIC elements can be Other versions on request
anodized in different colours. The colour natural
is standard, black (-1) is available as
an alternative. Other colours on request.
