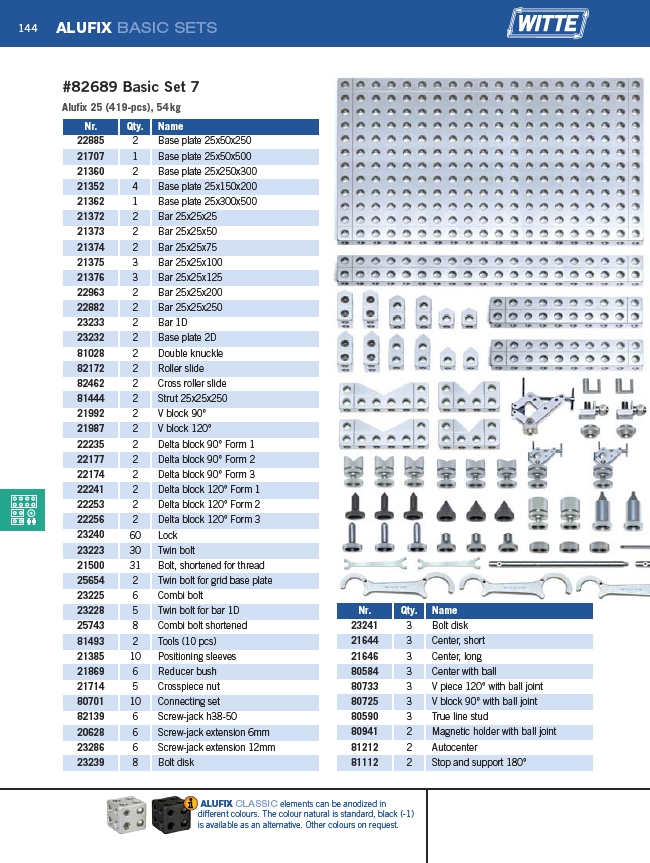

144 ALUFIX BASIC SETS
#82689 Basic Set 7
Alufix 25 (419-pcs), 54 kg
Nr. Qty. Name
22885 2 Base plate 25x50x250
21707 1 Base plate 25x50x500
21360 2 Base plate 25x250x300
21352 4 Base plate 25x150x200
21362 1 Base plate 25x300x500
21372 2 Bar 25x25x25
21373 2 Bar 25x25x50
21374 2 Bar 25x25x75
21375 3 Bar 25x25x100
21376 3 Bar 25x25x125
22963 2 Bar 25x25x200
22882 2 Bar 25x25x250
23233 2 Bar 1D
23232 2 Base plate 2D
81028 2 Double knuckle
82172 2 Roller slide
82462 2 Cross roller slide
81444 2 Strut 25x25x250
21992 2 V block 90°
21987 2 V block 120°
22235 2 Delta block 90° Form 1
22177 2 Delta block 90° Form 2
22174 2 Delta block 90° Form 3
22241 2 Delta block 120° Form 1
22253 2 Delta block 120° Form 2
22256 2 Delta block 120° Form 3
23240 60 Lock
23223 30 Twin bolt
21500 31 Bolt, shortened for thread
25654 2 Twin bolt for grid base plate
23225 6 Combi bolt
23228 5 Twin bolt for bar 1D
25743 8 Combi bolt shortened
81493 2 Tools (10 pcs)
21385 10 Positioning sleeves
21869 6 Reducer bush
21714 5 Crosspiece nut
80701 10 Connecting set
82139 6 Screw-jack h38-50
20628 6 Screw-jack extension 6mm
23286 6 Screw-jack extension 12mm
23239 8 Bolt disk
Nr. Qty. Name
23241 3 Bolt disk
21644 3 Center, short
21646 3 Center, long
80584 3 Center with ball
80733 3 V piece 120° with ball joint
80725 3 V block 90° with ball joint
80590 3 True line stud
80941 2 Magnetic holder with ball joint
81212 2 Autocenter
81112 2 Stop and support 180°
ALUFIX CLASSIC elements can be anodized in
different colours. The colour natural is standard, black (-1)
is available as an alternative. Other colours on request.
