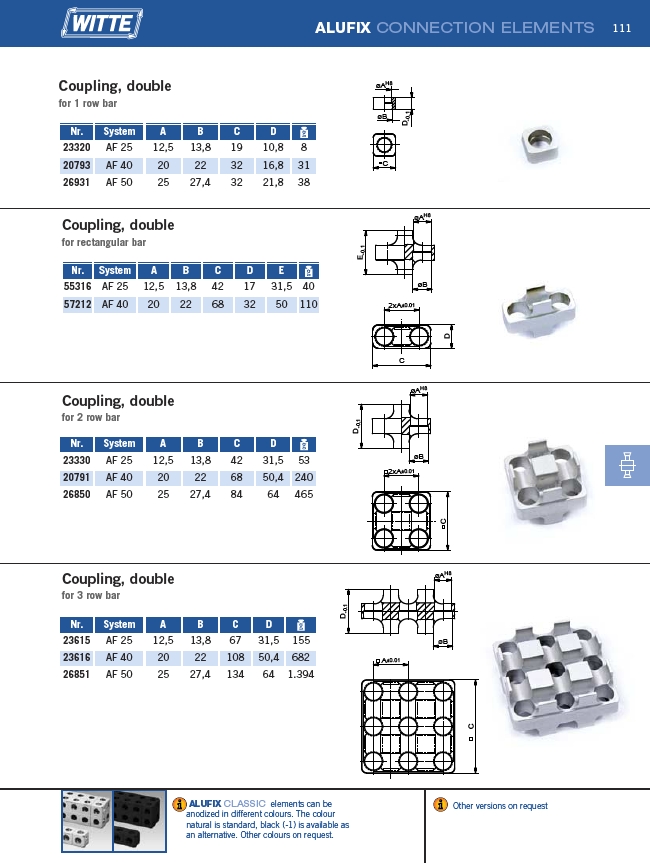

Coupling, double
for 1 row bar
Nr. System A B C D
23320 AF 25 12,5 13,8 19 10,8 8
20793 AF 40 20 22 32 16,8 31
26931 AF 50 25 27,4 32 21,8 38
Coupling, double
for rectangular bar
Nr. System A B C D E
55316 AF 25 12,5 13,8 42 17 31,5 40
57212 AF 40 20 22 68 32 50 110
Nr. System A B C D
23330 AF 25 12,5 13,8 42 31,5 53
20791 AF 40 20 22 68 50,4 240
26850 AF 50 25 27,4 84 64 465
Nr. System A B C D
23615 AF 25 12,5 13,8 67 31,5 155
23616 AF 40 20 22 108 50,4 682
26851 AF 50 25 27,4 134 64 1.394
ALUFIX CONNECTION ELEMENTS
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Other versions on request
Coupling, double
for 2 row bar
Coupling, double
for 3 row bar
