Nr. A B C
25342 M24 x 1 M8 17 10
Nr. System A B
25343 AF 25 12,5 M8 21
Nr. A B
21865 M8 M6 1

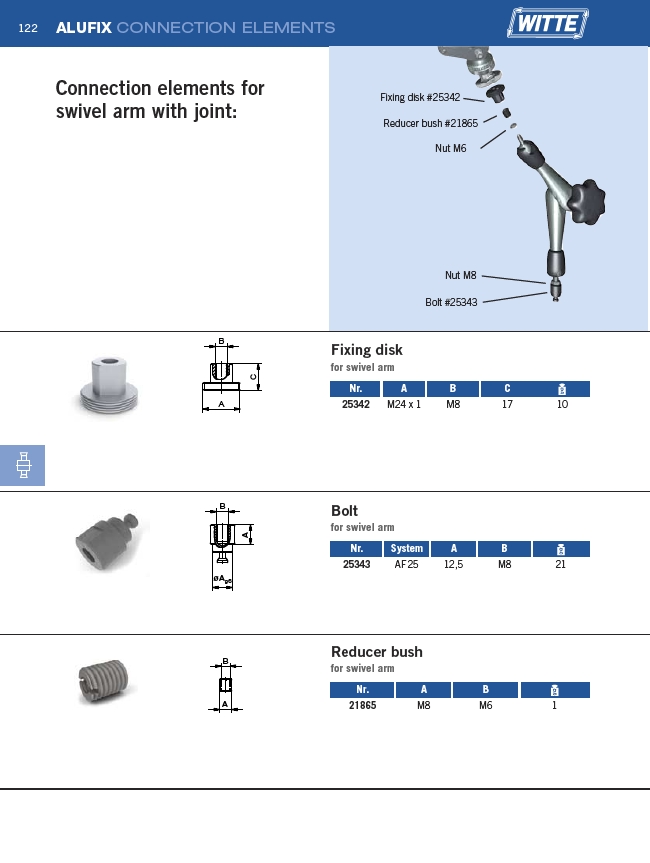

ALUFIX CONNECTION ELEMENTS
Fixing disk
for swivel arm
Bolt
for swivel arm
Reducer bush
for swivel arm
Connection elements for
swivel arm with joint:
Fixing disk #25342
Reducer bush #21865
Nut M6
Nut M8
Bolt #25343
