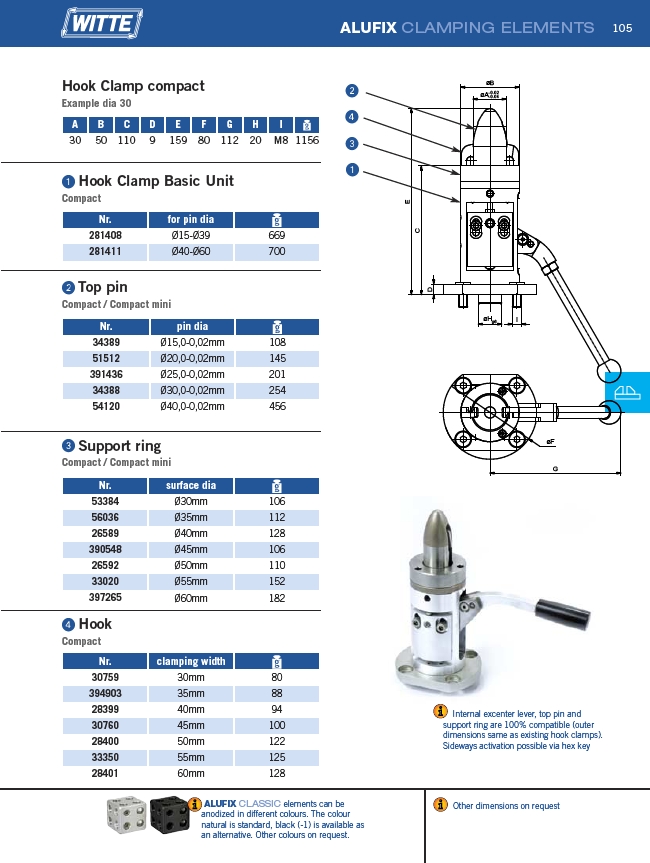

ALUFIX CLAMPING ELEMENTS
����
��������
��
��
��
��
����
��
��������������
����������
105
Hook Clamp compact
Example dia 30
A B C D E F G H I
30 50 110 9 159 80 112 20 M8 1156
Hook Clamp Basic Unit
Compact
Nr. for pin dia
281408 Ø15-Ø39 669
281411 Ø40-Ø60 700
Nr. pin dia
34389 Ø15,0-0,02mm 108
51512 Ø20,0-0,02mm 145
391436 Ø25,0-0,02mm 201
34388 Ø30,0-0,02mm 254
54120 Ø40,0-0,02mm 456
Nr. surface dia
53384 Ø30mm 106
56036 Ø35mm 112
26589 Ø40mm 128
390548 Ø45mm 106
26592 Ø50mm 110
33020 Ø55mm 152
397265 Ø60mm 182
Nr. clamping width
30759 30mm 80
394903 35mm 88
28399 40mm 94
30760 45mm 100
28400 50mm 122
33350 55mm 125
28401 60mm 128
Internal excenter lever, top pin and
support ring are 100% compatible (outer
dimensions same as existing hook clamps).
Sideways activation possible via hex key
ALUFIX CLASSIC elements can be Other dimensions on request
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Top pin
Compact / Compact mini
Support ring
Compact / Compact mini
Hook
Compact
