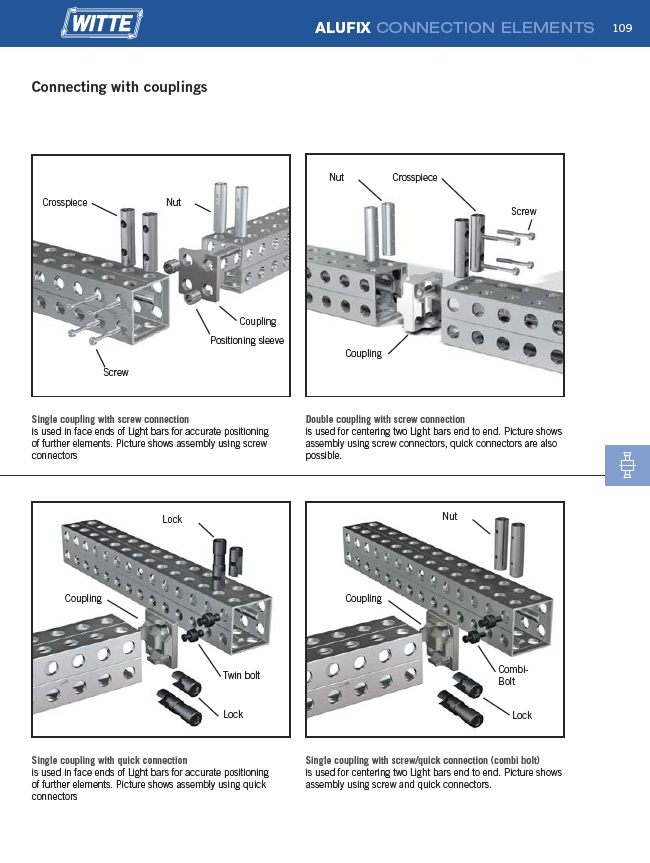

ALUFIX CONNECTION ELEMENTS 109
Single coupling with screw connection
is used in face ends of Light bars for accurate positioning
of further elements. Picture shows assembly using screw
connectors
Single coupling with quick connection
is used in face ends of Light bars for accurate positioning
of further elements. Picture shows assembly using quick
connectors
Double coupling with screw connection
is used for centering two Light bars end to end. Picture shows
assembly using screw connectors, quick connectors are also
possible.
Single coupling with screw/quick connection (combi bolt)
is used for centering two Light bars end to end. Picture shows
assembly using screw and quick connectors.
Coupling
Coupling
Coupling Coupling
Twin bolt
Lock
Lock
Combi-
Bolt
Lock
Nut
Nut
Nut
Crosspiece
Crosspiece
Screw
Screw
Positioning sleeve
Connecting with couplings
