ALUFIX CLAMPING ELEMENTS

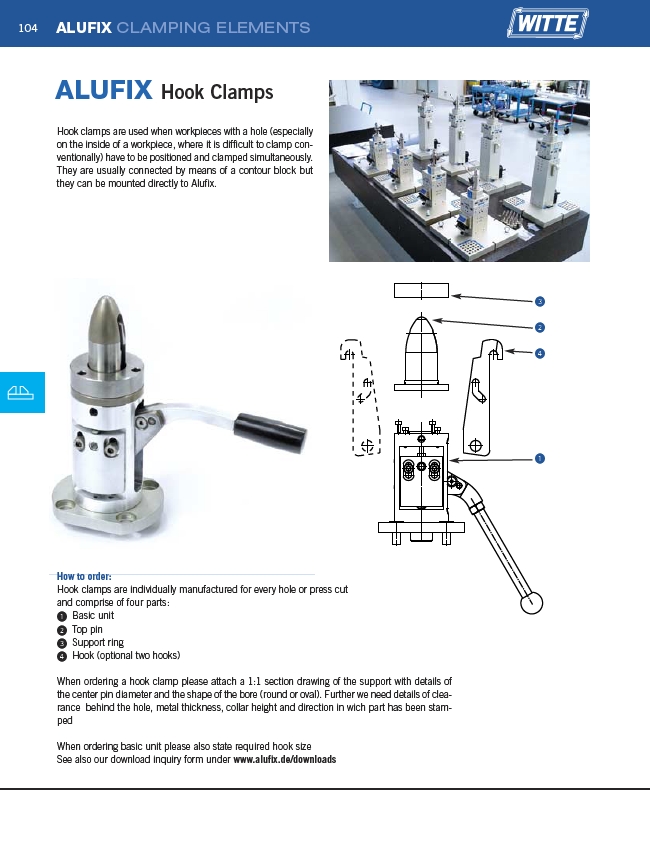

ALUFIX Hook Clamps
Hook clamps are used when workpieces with a hole (especially
on the inside of a workpiece, where it is difficult to clamp conventionally)
have to be positioned and clamped simultaneously.
They are usually connected by means of a contour block but
they can be mounted directly to Alufix.
How to order:
Hook clamps are individually manufactured for every hole or press cut
and comprise of four parts:
Basic unit
Top pin
Support ring
Hook (optional two hooks)
When ordering a hook clamp please attach a 1:1 section drawing of the support with details of
the center pin diameter and the shape of the bore (round or oval). Further we need details of clearance
behind the hole, metal thickness, collar height and direction in wich part has been stamped
When ordering basic unit please also state required hook size
See also our download inquiry form under www.alufix.de/downloads
