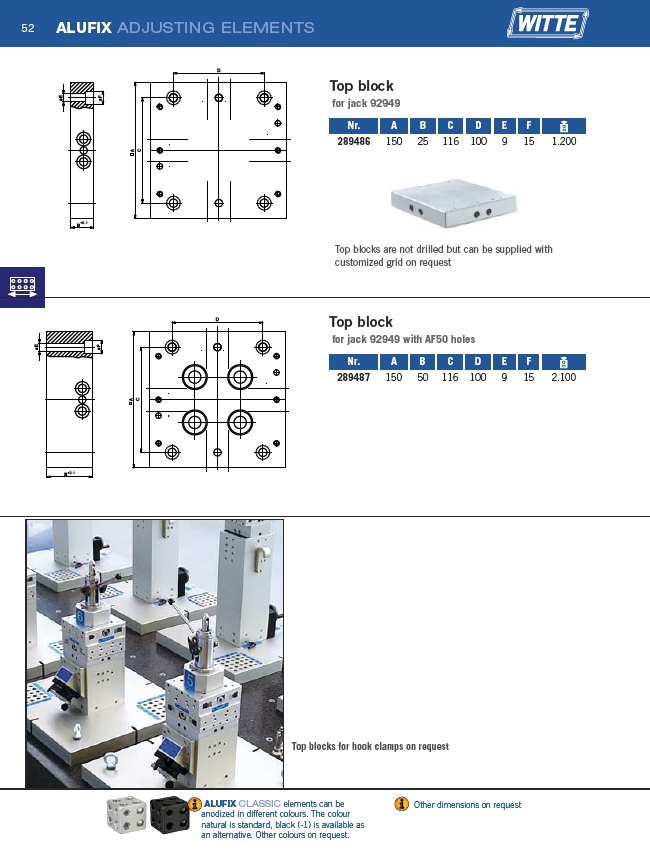

ALUFIX ADJUSTING ELEMENTS
��
��
��
���� �� �� ��
����
����
Top block
for jack 92949
Nr. A B C D E F
289486 150 25 116 100 9 15 1.200
��
��
��
���� �� �� ��
����
����
Top blocks are not drilled but can be supplied with
customized grid on request
Top block
for jack 92949 with AF50 holes
Nr. A B C D E F
289487 150 50 116 100 9 15 2.100
Top blocks for hook clamps on request
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Other dimensions on request
