Nr. A (AF) B C D E
93063 25 M6 72 M24x1 44,6 342
99794 40 M10 115 M32x1 69 750
Nr. A (AF) B C D
93660 25 M6 72 32,6 370
99807 40 M10 115 50 750

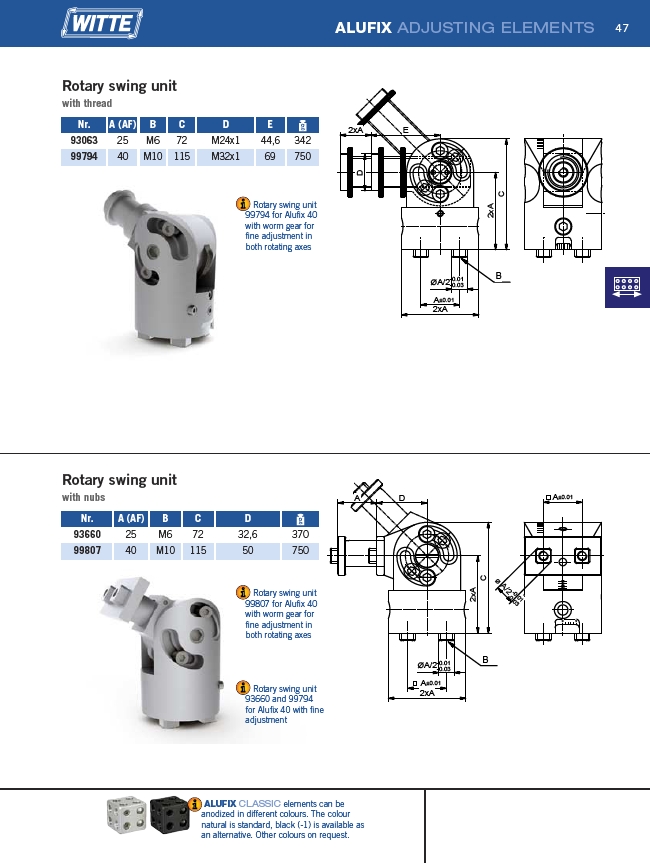

ALUFIX ADJUSTING ELEMENTS
Rotary swing unit
99794 for Alufix 40
with worm gear for
fine adjustment in
both rotating axes
Rotary swing unit
99807 for Alufix 40
with worm gear for
fine adjustment in
both rotating axes
Rotary swing unit
93660 and 99794
for Alufix 40 with fine
adjustment
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Rotary swing unit
with thread
Rotary swing unit
with nubs
