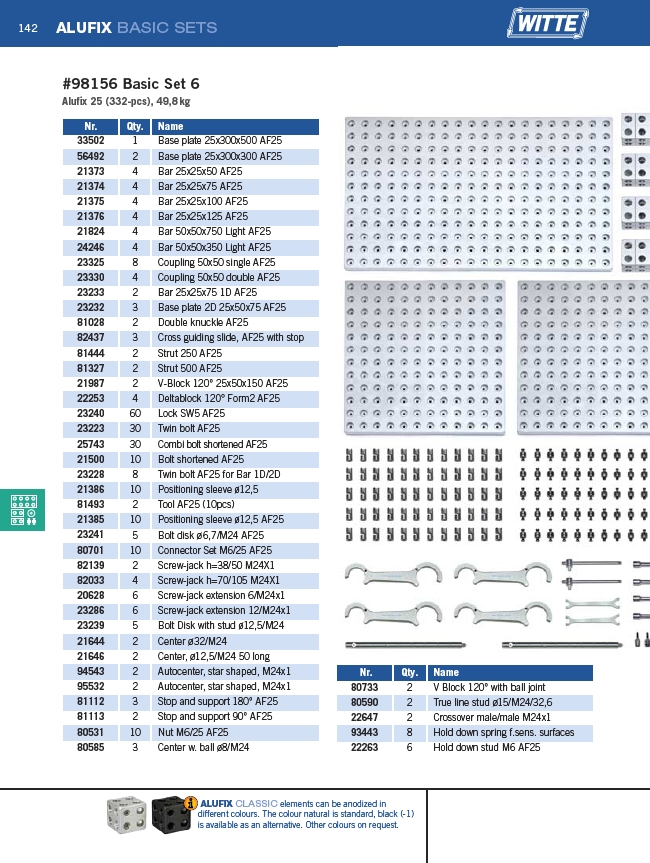

142 ALUFIX BASIC SETS
#98156 Basic Set 6
Alufix 25 (332-pcs), 49,8 kg
Nr. Qty. Name
80733 2 V Block 120° with ball joint
80590 2 True line stud ø15/M24/32,6
22647 2 Crossover male/male M24x1
93443 8 Hold down spring f.sens. surfaces
22263 6 Hold down stud M6 AF25
Nr. Qty. Name
33502 1 Base plate 25x300x500 AF25
56492 2 Base plate 25x300x300 AF25
21373 4 Bar 25x25x50 AF25
21374 4 Bar 25x25x75 AF25
21375 4 Bar 25x25x100 AF25
21376 4 Bar 25x25x125 AF25
21824 4 Bar 50x50x750 Light AF25
24246 4 Bar 50x50x350 Light AF25
23325 8 Coupling 50x50 single AF25
23330 4 Coupling 50x50 double AF25
23233 2 Bar 25x25x75 1D AF25
23232 3 Base plate 2D 25x50x75 AF25
81028 2 Double knuckle AF25
82437 3 Cross guiding slide, AF25 with stop
81444 2 Strut 250 AF25
81327 2 Strut 500 AF25
21987 2 V-Block 120° 25x50x150 AF25
22253 4 Deltablock 120° Form2 AF25
23240 60 Lock SW5 AF25
23223 30 Twin bolt AF25
25743 30 Combi bolt shortened AF25
21500 10 Bolt shortened AF25
23228 8 Twin bolt AF25 for Bar 1D/2D
21386 10 Positioning sleeve ø12,5
81493 2 Tool AF25 (10pcs)
21385 10 Positioning sleeve ø12,5 AF25
23241 5 Bolt disk ø 6,7/M24 AF25
80701 10 Connector Set M6/25 AF25
82139 2 Screw-jack h=38/50 M24X1
82033 4 Screw-jack h=70/105 M24X1
20628 6 Screw-jack extension 6/M24x1
23286 6 Screw-jack extension 12/M24x1
23239 5 Bolt Disk with stud ø12,5/M24
21644 2 Center ø 32/M24
21646 2 Center, ø12,5/M24 50 long
94543 2 Autocenter, star shaped, M24x1
95532 2 Autocenter, star shaped, M24x1
81112 3 Stop and support 180° AF25
81113 2 Stop and support 90° AF25
80531 10 Nut M6/25 AF25
80585 3 Center w. ball ø8/M24
ALUFIX CLASSIC elements can be anodized in
different colours. The colour natural is standard, black (-1)
is available as an alternative. Other colours on request.
