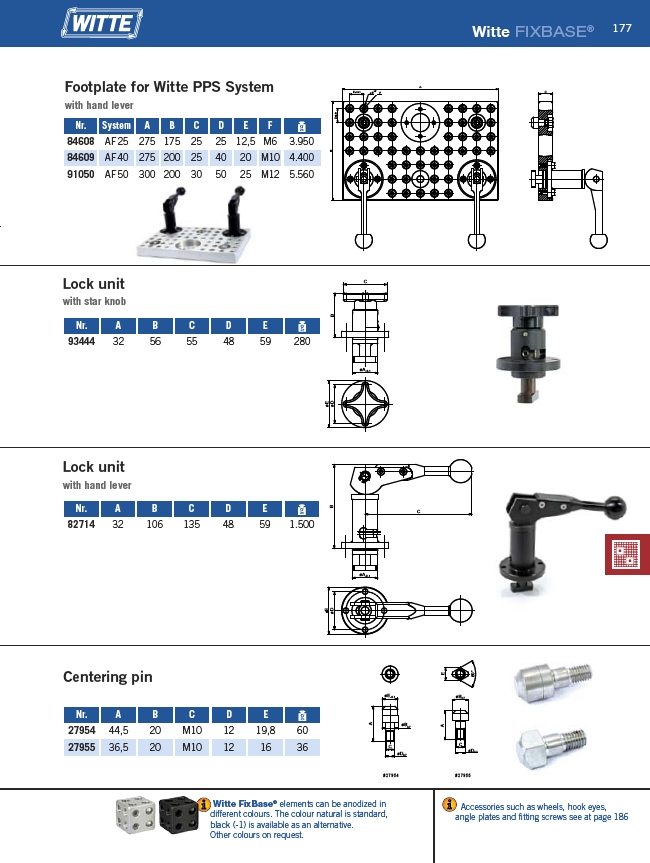

Witte FIXBASE® 177
��
������������
��
�������� ��
������������
��
������������
���� ��
����
��
Nr. System A B C D E F
84608 AF 25 275 175 25 25 12,5 M6 3.950
84609 AF 40 275 200 25 40 20 M10 4.400
91050 AF 50 300 200 30 50 25 M12 5.560
Nr. A B C D E
93444 32 56 55 48 59 280
Nr. A B C D E
82714 32 106 135 48 59 1.500
������������
��
��
����
����
�� �� �� �� �� �� �� �� �� �� �� �� �� �� �� ��
������������
��
��������
��������
��������
��
��
��������
��
������
��
�� �� �� �� �� �� �� �� �� �� �� ��
Nr. A B C D E
27954 44,5 20 M10 12 19,8 60
27955 36,5 20 M10 12 16 36
Witte FixBase® elements can be anodized in
different colours. The colour natural is standard,
black (-1) is available as an alternative.
Other colours on request.
Accessories such as wheels, hook eyes,
angle plates and fitting screws see at page 186
Footplate for Witte PPS System
with hand lever
Lock unit
with star knob
Lock unit
with hand lever
Centering pin
