75
����
��
�� ��
����
��
��
��
��
����
��
��
��
����
Nr. Material A B C
21667 Alu 6,5 M24x1 32 10
21669 Alu 8,5 M32x1 42 18
21666 POM 6,5 M24x1 32 4
21668 POM 8,5 M32x1 42 9
XY-Stop
for screw-jack
Nr. A B C
25683 2,5 M24x1 32 2
Nr. A B C D
21659 M24x1 M32x1 8 42 21
Nr. A B C D
21227 M32x1 M24x1 7 42 32
C
C
E
øA
øB
D
Nr. A B C D E
285204 32 24 50 35 M4 32
285205 42 32 65 46 M5 68

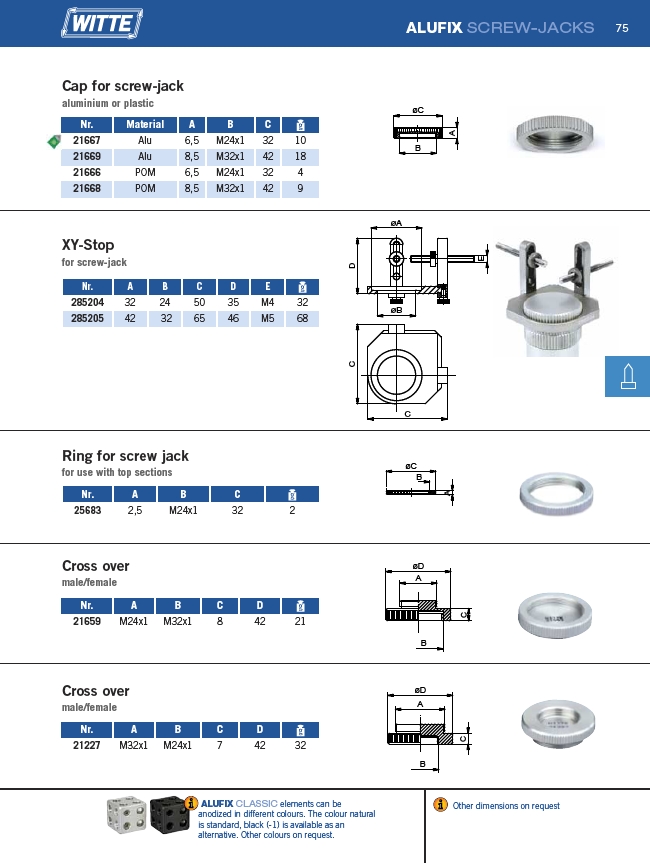

ALUFIX SCREW-JACKS
ALUFIX CLASSIC elements can be Other dimensions on request
anodized in different colours. The colour natural
is standard, black (-1) is available as an
alternative. Other colours on request.
Cap for screw-jack
aluminium or plastic
Ring for screw jack
for use with top sections
Cross over
male/female
Cross over
male/female
