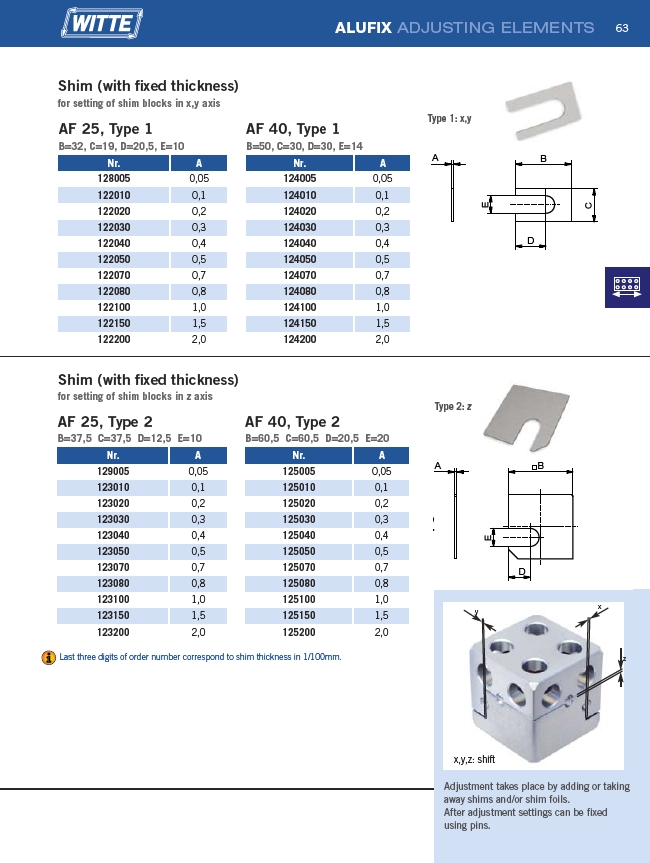

ALUFIX ADJUSTING ELEMENTS
�� ��
��
��
��
�� ��
��
��
��
63
y x
z
Shim (with fixed thickness)
for setting of shim blocks in x,y axis
Nr. A
128005 0,05
122010 0,1
122020 0,2
122030 0,3
122040 0,4
122050 0,5
122070 0,7
122080 0,8
122100 1,0
122150 1,5
122200 2,0
Nr. A
124005 0,05
124010 0,1
124020 0,2
124030 0,3
124040 0,4
124050 0,5
124070 0,7
124080 0,8
124100 1,0
124150 1,5
124200 2,0
Shim (with fixed thickness)
for setting of shim blocks in z axis
Nr. A
129005 0,05
123010 0,1
123020 0,2
123030 0,3
123040 0,4
123050 0,5
123070 0,7
123080 0,8
123100 1,0
123150 1,5
123200 2,0
Nr. A
125005 0,05
125010 0,1
125020 0,2
125030 0,3
125040 0,4
125050 0,5
125070 0,7
125080 0,8
125100 1,0
125150 1,5
125200 2,0
AF 25, Type 1
B=32, C=19, D=20,5, E=10
AF 40, Type 1
B=50, C=30, D=30, E=14
AF 25, Type 2
B=37,5 C=37,5 D=12,5 E=10
AF 40, Type 2
B=60,5 C=60,5 D=20,5 E=20
Type 1: x,y
Type 2: z
Last three digits of order number correspond to shim thickness in 1/100mm.
x,y,z: shift
Adjustment takes place by adding or taking
away shims and/or shim foils.
After adjustment settings can be fixed
using pins.
