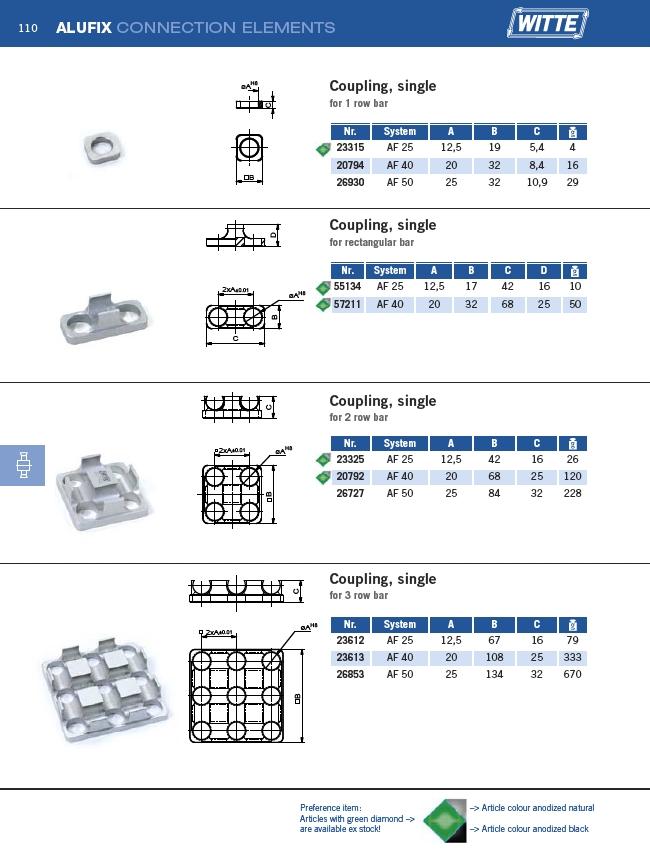

110
��
��
��������
��������
��
��
��
����������������
��������
�� ��
����������������
�� ��
��������
����������������
Nr. System A B C
23315 AF 25 12,5 19 5,4 4
20794 AF 40 20 32 8,4 16
26930 AF 50 25 32 10,9 29
Coupling, single
for rectangular bar
Nr. System A B C D
55134 AF 25 12,5 17 42 16 10
57211 AF 40 20 32 68 25 50
Nr. System A B C
23325 AF 25 12,5 42 16 26
20792 AF 40 20 68 25 120
26727 AF 50 25 84 32 228
Nr. System A B C
23612 AF 25 12,5 67 16 79
23613 AF 40 20 108 25 333
26853 AF 50 25 134 32 670
ALUFIX CONNECTION ELEMENTS
Coupling, single
for 1 row bar
Coupling, single
for 2 row bar
Coupling, single
for 3 row bar
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
