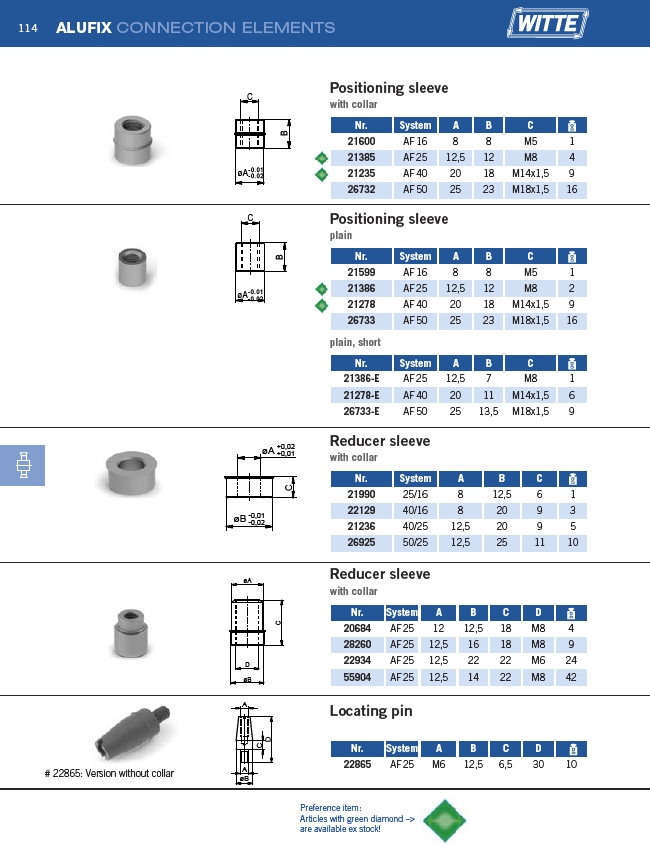

114
Positioning sleeve
with collar
Nr. System A B C
21600 AF 16 8 8 M5 1
21385 AF 25 12,5 12 M8 4
21235 AF 40 20 18 M14x1,5 9
26732 AF 50 25 23 M18x1,5 16
Positioning sleeve
plain
Nr. System A B C
21599 AF 16 8 8 M5 1
21386 AF 25 12,5 12 M8 2
21278 AF 40 20 18 M14x1,5 9
26733 AF 50 25 23 M18x1,5 16
plain, short
Reducer sleeve
with collar
Nr. System A B C
21990 25/16 8 12,5 6 1
22129 40/16 8 20 9 3
21236 40/25 12,5 20 9 5
26925 50/25 12,5 25 11 10
Reducer sleeve
with collar
Nr. System A B C D
22865 AF 25 M6 12,5 6,5 30 10
��
��������������
����������
��
��
��������������
����������
��
���� ����������
���� ��
��
����
��
��
����
��
��
Nr. System A B C D
20684 AF 25 12 12,5 18 M8 4
28260 AF 25 12,5 16 18 M8 9
22934 AF 25 12,5 22 22 M6 24
55904 AF 25 12,5 14 22 M8 42
���� ����������
����������
����������
��
Nr. System A B C
21386-E AF 25 12,5 7 M8 1
21278-E AF 40 20 11 M14x1,5 6
26733-E AF 50 25 13,5 M18x1,5 9
ALUFIX CONNECTION ELEMENTS
Locating pin
# 22865: Version without collar
Preference item:
Articles with green diamond –>
are available ex stock!
