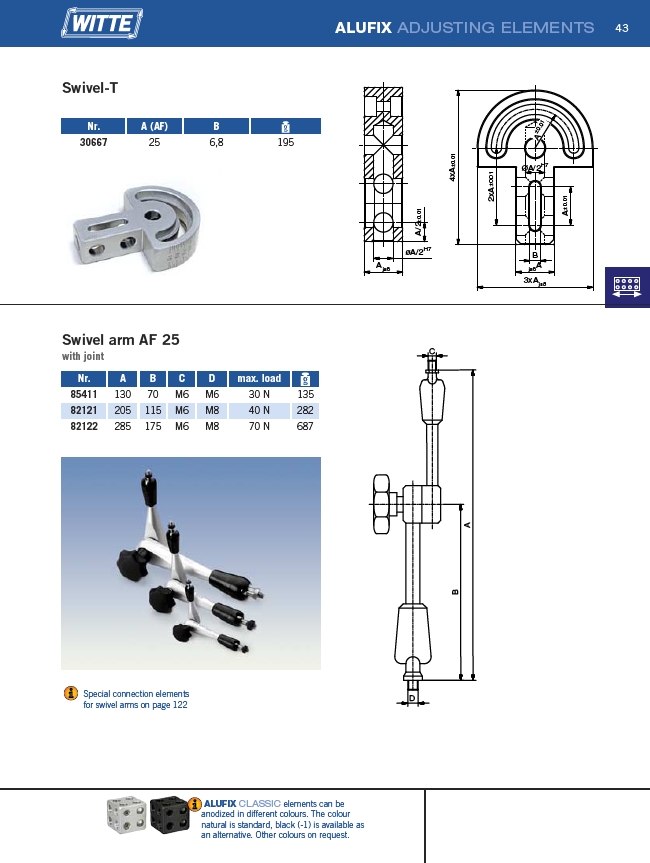

43
Nr. A (AF) B
30667 25 6,8 195
ALUFIX ADJUSTING ELEMENTS
B
3xAjs8
Ajs8
4xA±0.01
A/2±0.01
øA/2H7
2xA±0.01
A±0.01
js8A
A±0.01
ØA/2H7
A
D
C
B
Special connection elements
for swivel arms on page 122
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Swivel-T
Swivel arm AF 25
with joint
Nr. A B C D max. load
85411 130 70 M6 M6 30 N 135
82121 205 115 M6 M8 40 N 282
82122 285 175 M6 M8 70 N 687
