ALUFIX CLAMPING ELEMENTS
�������� ��
��
����
��
��
����
��
��������
������������ ���� ���� ������
�� �� �� �� �� ����
��
��
���������� ���������� ���� ��
����
��������
��������������
����������
106
A B C D E F G H I J
18 50 36,5 110 145,5 9 112 20 M8 80 991
Tolerances in workpiece thickness of
up to +/- 0,3mm are evened out.
Fast adjustment according to workpiece
thickness possible. More space between
operating lever and clamping surface =
more freedom of movement and less part
collision due to horizontal lever movement.
Hook alignment independent of
lever orientation, infinite rotary movement
360°.
Support ring infinite rotary movement
360°

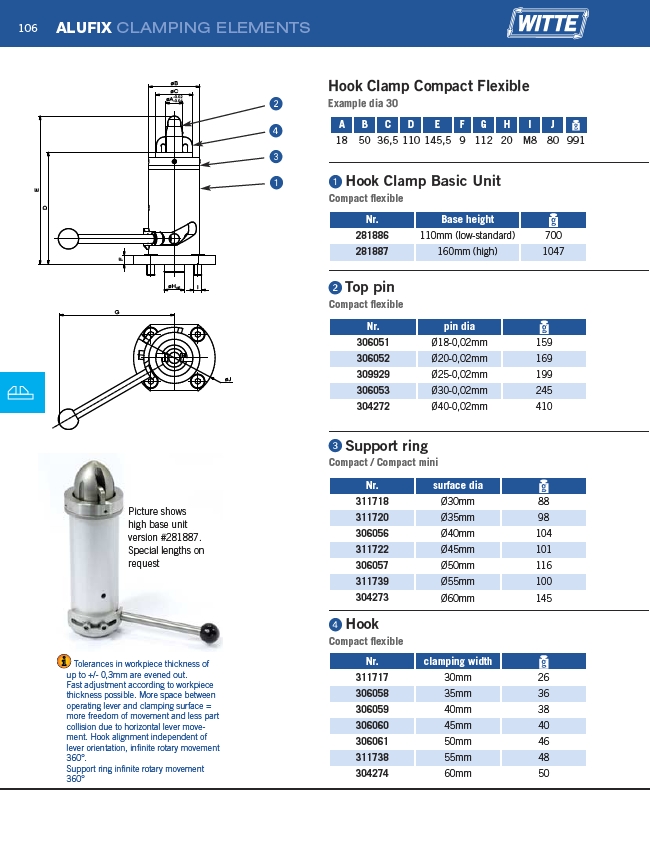

Hook Clamp Compact Flexible
Example dia 30
Hook Clamp Basic Unit
Compact flexible
Nr. Base height
281886 110mm (low-standard) 700
281887 160mm (high) 1047
Top pin
Compact flexible
Nr. pin dia
306051 Ø18-0,02mm 159
306052 Ø20-0,02mm 169
309929 Ø25-0,02mm 199
306053 Ø30-0,02mm 245
304272 Ø40-0,02mm 410
Support ring
Compact / Compact mini
Nr. surface dia
311718 Ø30mm 88
311720 Ø35mm 98
306056 Ø40mm 104
311722 Ø45mm 101
306057 Ø50mm 116
311739 Ø55mm 100
304273 Ø60mm 145
Hook
Compact flexible
Nr. clamping width
311717 30mm 26
306058 35mm 36
306059 40mm 38
306060 45mm 40
306061 50mm 46
311738 55mm 48
304274 60mm 50
Picture shows
high base unit
version #281887.
Special lengths on
request
