113

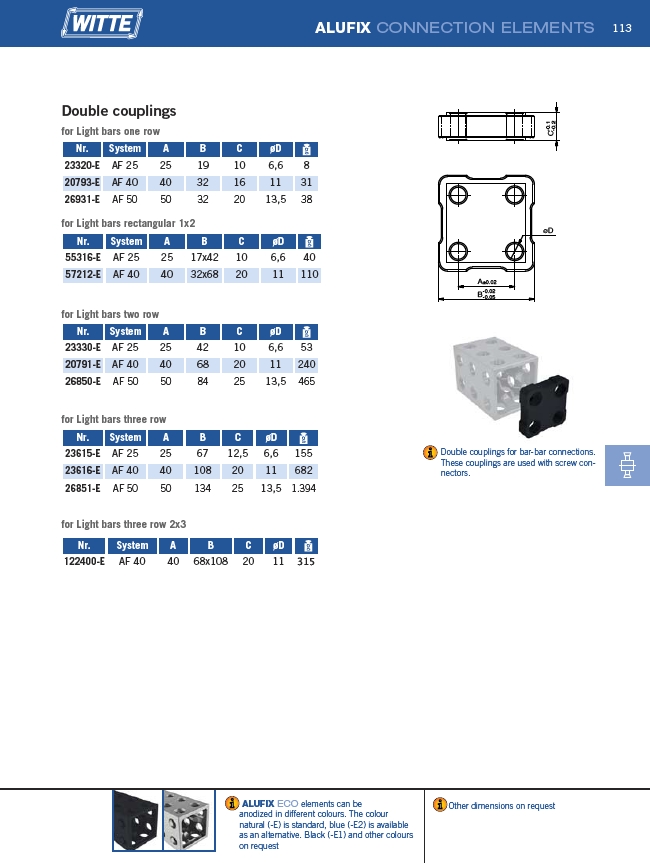

Double couplings
for Light bars one row
Nr. System A B C øD
23320-E AF 25 25 19 10 6,6 8
20793-E AF 40 40 32 16 11 31
26931-E AF 50 50 32 20 13,5 38
ALUFIX CONNECTION ELEMENTS
for Light bars rectangular 1x2
Nr. System A B C øD
55316-E AF 25 25 17x42 10 6,6 40
57212-E AF 40 40 32x68 20 11 110
for Light bars two row
Nr. System A B C øD
23330-E AF 25 25 42 10 6,6 53
20791-E AF 40 40 68 20 11 240
26850-E AF 50 50 84 25 13,5 465
for Light bars three row
Nr. System A B C øD
122400-E AF 40 40 68x108 20 11 315
������������
������������
����������
����������
��������
����
Nr. System A B C øD
23615-E AF 25 25 67 12,5 6,6 155
23616-E AF 40 40 108 20 11 682
26851-E AF 50 50 134 25 13,5 1.394
Double couplings for bar-bar connections.
These couplings are used with screw connectors.
for Light bars three row 2x3
ALUFIX ECO elements can be
anodized in different colours. The colour
natural (-E) is standard, blue (-E2) is available
as an alternative. Black (-E1) and other colours
on request
Other dimensions on request
