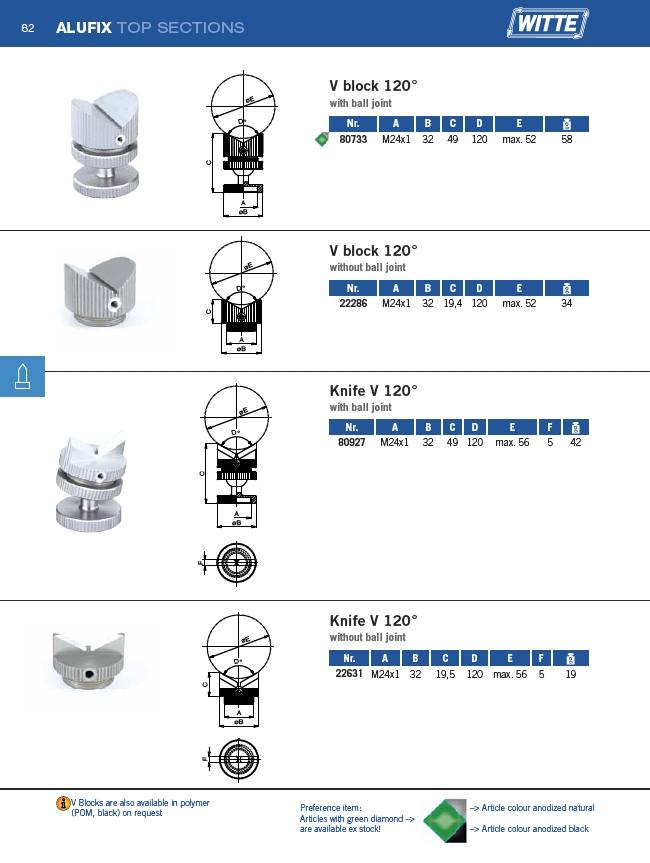

ALUFIX TOP SECTIONS
����
��
����
��
����
����
����
��
����
��
��
����
����
��
����
��
����
����
��
����
�� ��
V block 120°
with ball joint
Nr. A B C D E
80733 M24x1 32 49 120 max. 52 58
V block 120°
without ball joint
Nr. A B C D E
22286 M24x1 32 19,4 120 max. 52 34
Nr. A B C D E F
80927 M24x1 32 49 120 max. 56 5 42
Nr. A B C D E F
22631 M24x1 32 19,5 120 max. 56 5 19
V Blocks are also available in polymer
(POM, black) on request
Knife V 120°
with ball joint
Knife V 120°
without ball joint
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
