Nr. System A B C Clamp force
20244 AF 16 4 36 7,5 8 N 1
20290 AF 25/16 6 36 7,5 12 N 1
22258 AF 25/16 6 59 11,5 24,5 N 6
24499 AF 25 6 105 11,5 12 N 30
22355 AF 40 10 94 19,2 49 N 60
28058 AF 50 12 118 23 59 N 50
Hold down spring, plastic
Nr. System A B
53976 AF 25/16 6 63,5 4
53977 AF 25/16 6 109,5 6
Hold down spring with plastic cap
silicone free for sensitive surfaces
Nr. System A B
93442 AF 25/16 6 103,5 9
93443 AF 25/16 6 57,5 6
øA
B
Nr. System A B C Clamp force
34634 AF 16 4 36,5 23,5 8 N 2
34764 AF 16 6 36,5 23,5 12 N 1
34765 AF 25 6 59 37 24,5 N 3
34766 AF 40 10 94,5 59,5 49 N 27
34767 AF 50 12 118 74 59 N 50
Nr. System A B
284708 AF16 4 36 2

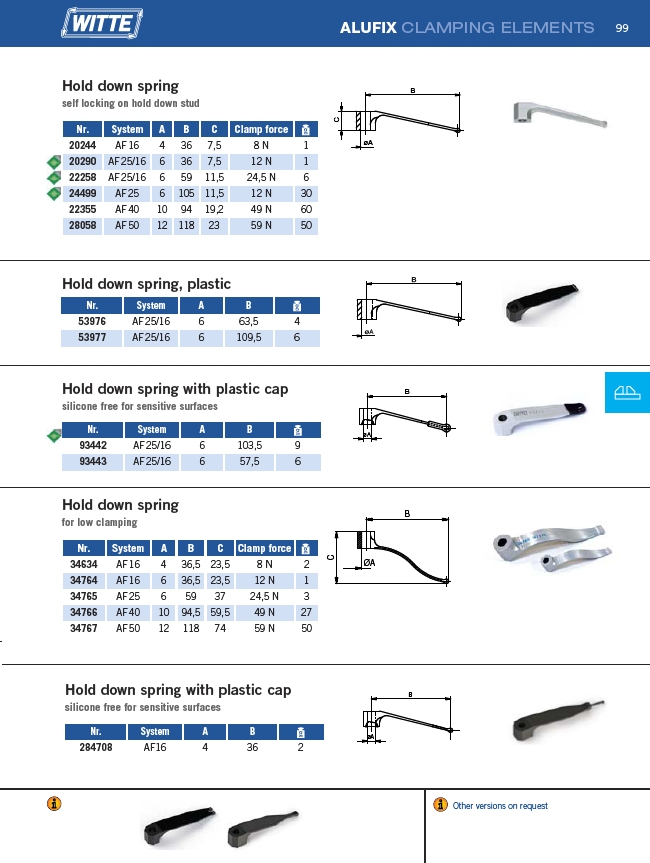

ALUFIX CLAMPING ELEMENTS
Other versions on request
Hold down spring
self locking on hold down stud
Hold down spring
for low clamping
Hold down spring with plastic cap
silicone free for sensitive surfaces
