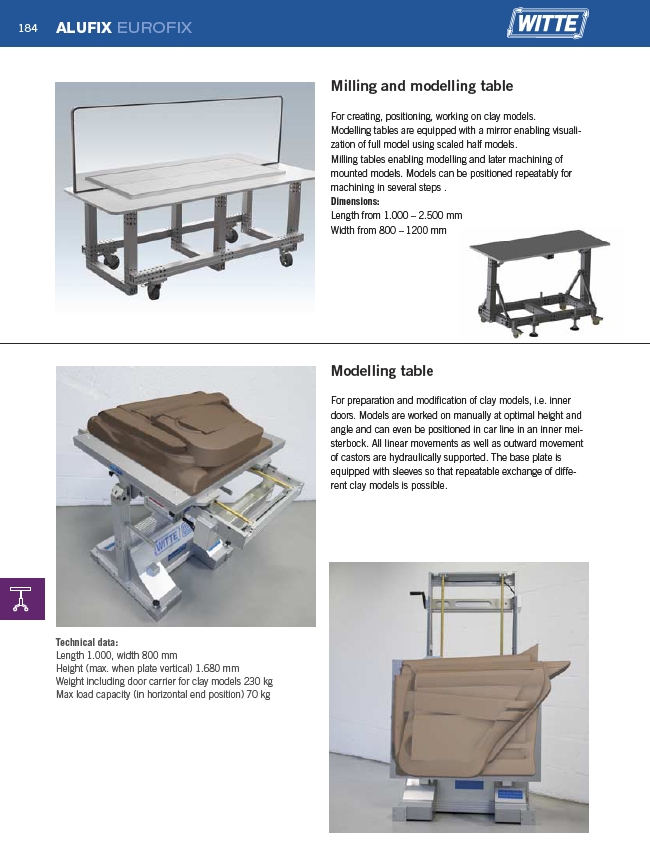

184 ALUFIX EUROFIX
Milling and modelling table
For creating, positioning, working on clay models.
Modelling tables are equipped with a mirror enabling visualization
of full model using scaled half models.
Milling tables enabling modelling and later machining of
mounted models. Models can be positioned repeatably for
machining in several steps .
Dimensions:
Length from 1.000 – 2.500 mm
Width from 800 – 1200 mm
Technical data:
Length 1.000, width 800 mm
Height (max. when plate vertical) 1.680 mm
Weight including door carrier for clay models 230 kg
Max load capacity (in horizontal end position) 70 kg
Modelling table
For preparation and modification of clay models, i.e. inner
doors. Models are worked on manually at optimal height and
angle and can even be positioned in car line in an inner meisterbock.
All linear movements as well as outward movement
of castors are hydraulically supported. The base plate is
equipped with sleeves so that repeatable exchange of different
clay models is possible.
