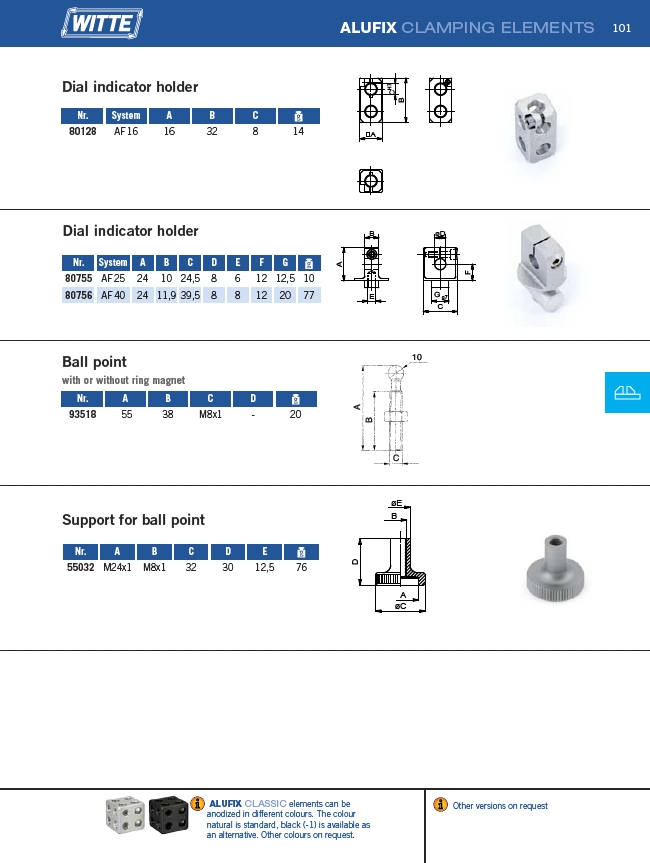

ALUFIX CLAMPING ELEMENTS
��
��
��
��
����
�� ����
��
Dial indicator holder
Nr. System A B C D E F G
80755 AF 25 24 10 24,5 8 6 12 12,5 10
80756 AF 40 24 11,9 39,5 8 8 12 20 77
��
������
��
Nr. System A B C
80128 AF 16 16 32 8 14
Nr. A B C D
93518 55 38 M8x1 - 20
Nr. A B C D E
55032 M24x1 M8x1 32 30 12,5 76
C
�� ����
��
��
����
10
B
A
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
Other versions on request
Dial indicator holder
Ball point
with or without ring magnet
Support for ball point
