Alufix 2019/20 EN - Page 208

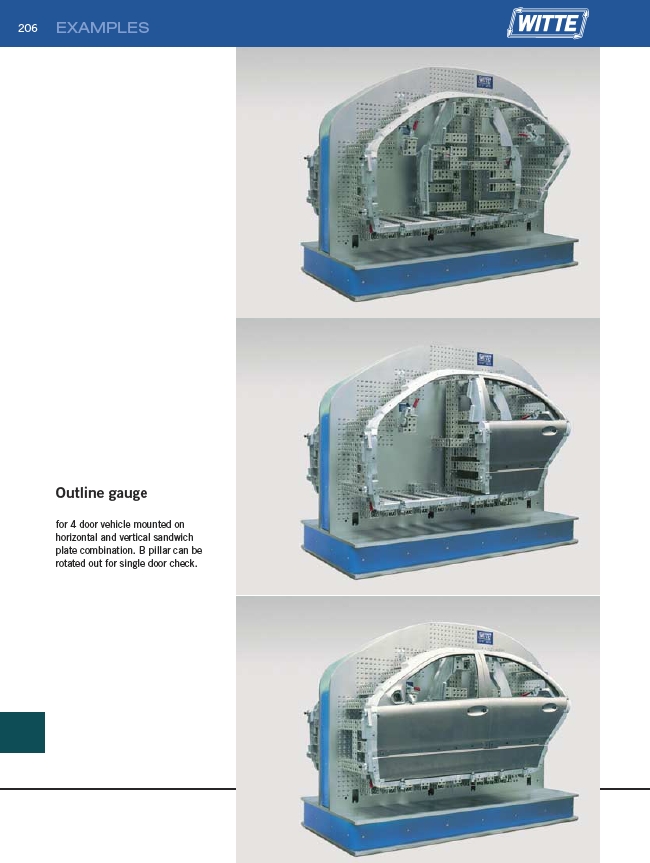

206 EXAMPLES Outline gauge for 4 door vehicle mounted on horizontal and vertical sandwich plate combination. B pillar can be rotated out for single door check.
