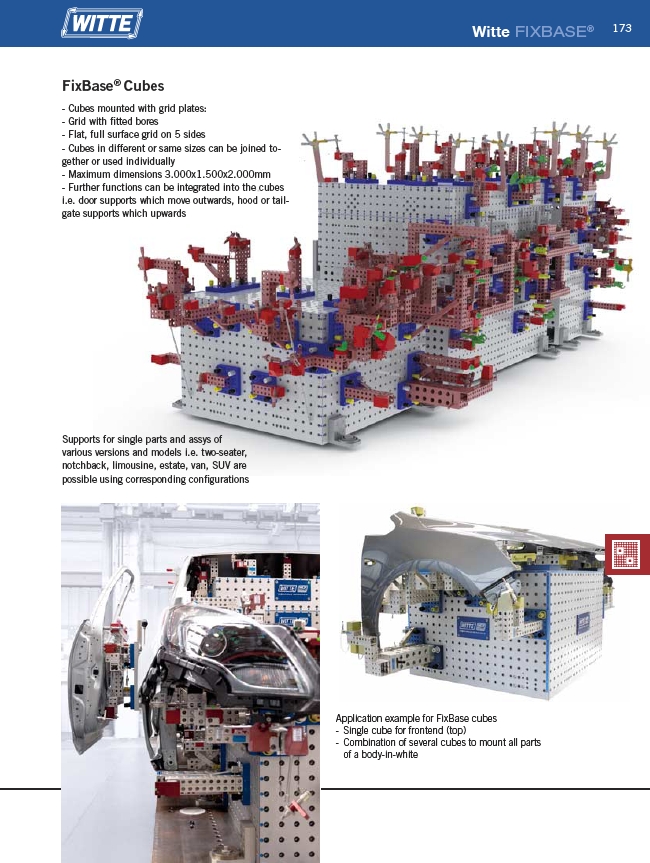

Witte FIXBASE® 173
Supports for single parts and assys of
various versions and models i.e. two-seater,
notchback, limousine, estate, van, SUV are
possible using corresponding configurations
Application example for FixBase cubes
- Single cube for frontend (top)
- Combination of several cubes to mount all parts
of a body-in-white
FixBase® Cubes
- Cubes mounted with grid plates:
- Grid with fitted bores
- Flat, full surface grid on 5 sides
- Cubes in different or same sizes can be joined together
or used individually
- Maximum dimensions 3.000x1.500x2.000mm
- Further functions can be integrated into the cubes
i.e. door supports which move outwards, hood or tailgate
supports which upwards
