134
Handle set up using
standard Alufix Classic
elements, anodized black

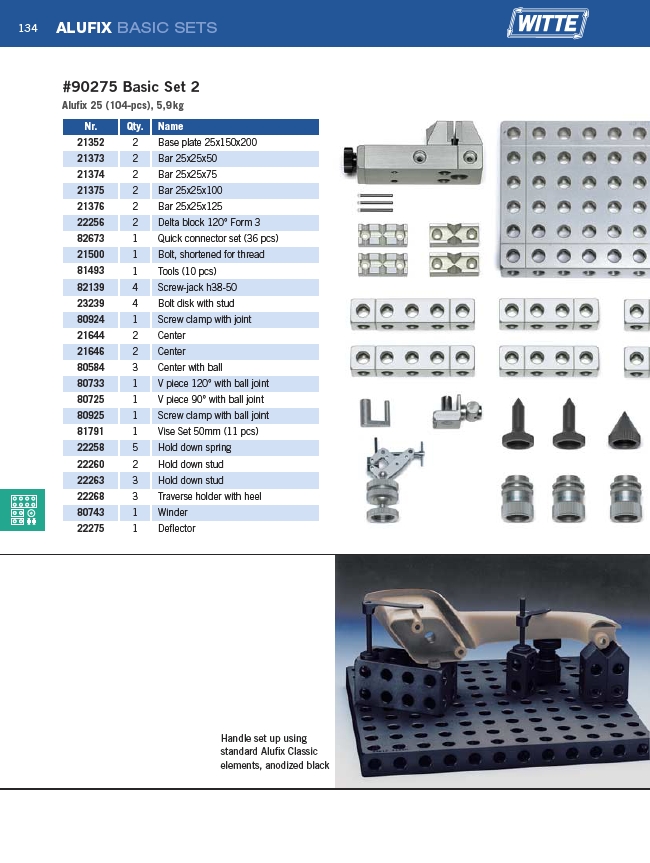

ALUFIX BASIC SETS
#90275 Basic Set 2
Alufix 25 (104-pcs), 5,9 kg
Nr. Qty. Name
21352 2 Base plate 25x150x200
21373 2 Bar 25x25x50
21374 2 Bar 25x25x75
21375 2 Bar 25x25x100
21376 2 Bar 25x25x125
22256 2 Delta block 120° Form 3
82673 1 Quick connector set (36 pcs)
21500 1 Bolt, shortened for thread
81493 1 Tools (10 pcs)
82139 4 Screw-jack h38-50
23239 4 Bolt disk with stud
80924 1 Screw clamp with joint
21644 2 Center
21646 2 Center
80584 3 Center with ball
80733 1 V piece 120° with ball joint
80725 1 V piece 90° with ball joint
80925 1 Screw clamp with ball joint
81791 1 Vise Set 50mm (11 pcs)
22258 5 Hold down spring
22260 2 Hold down stud
22263 3 Hold down stud
22268 3 Traverse holder with heel
80743 1 Winder
22275 1 Deflector
/af25_base_plates.prj
/bar_single_row_af25.prj
/bar_single_row_af25.prj
/bar_single_row_af25.prj
/bar_single_row_af25.prj
/deltablock120_form3.prj
/combibolt_shortened.prj
/screw_jack_prec.prj
/bolt_disk_w_stud_171.prj
/center_short.prj
/center_long.prj
/center_with_ball.prj
/prismen.prj
/prismen.prj
/niederhalterfeder.prj
/hold_down_column_short_self_locking_xs16.prj
/hold_down_column_with_thread_xs16.prj
/aufn_niederhaltesaeule.prj
