Nr. A(AF) B C D E F
80923 16 M4 17,5) 90° max.ø 17 1 9
82230 25 M6 27 90° max.ø 26 1,5 32
Nr. A(AF) B C D E F G
80921 16 M4 17,5 90° max.ø 17 1 7 10
82232 25 M6 27 90° max.ø 26 1,5 11 35
Nr. A(AF) B C D E F G
80922 16 M4 17,5 90° max.ø 17 1 14 10
82231 25 M6 27 90° max.ø 26 1,5 22 35
67
Application using optional stop,
see page 84
ALUFIX CLASSIC Alufix Classic elements
can be anodized in different colours. The
colour natural is standard, black (-1) is available
as an alternative. Other colours on request.

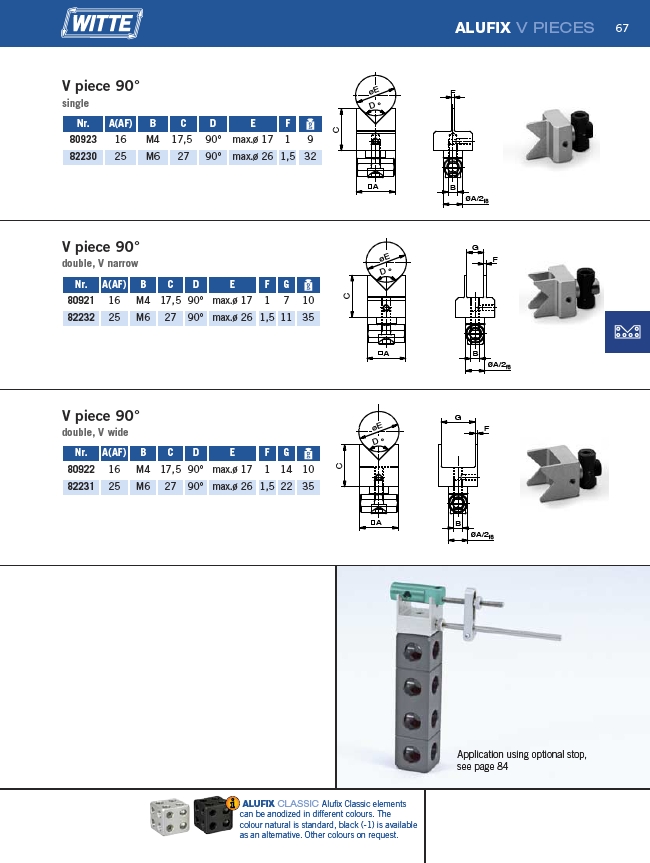

ALUFIX V PIECES
V piece 90°
single
V piece 90°
double, V narrow
V piece 90°
double, V wide
