60

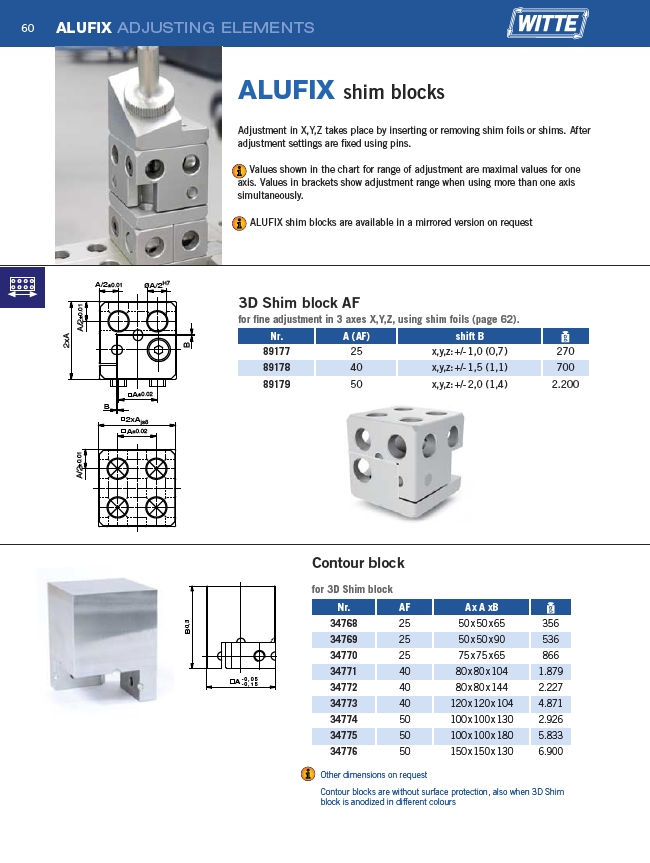

ALUFIX ADJUSTING ELEMENTS
������������
����������������
������������
��
���������������� ������������
������������
����������������
������
��
ALUFIX shim blocks
Adjustment in X,Y,Z takes place by inserting or removing shim foils or shims. After
adjustment settings are fixed using pins.
Values shown in the chart for range of adjustment are maximal values for one
axis. Values in brackets show adjustment range when using more than one axis
simultaneously.
ALUFIX shim blocks are available in a mirrored version on request
3D Shim block AF
for fine adjustment in 3 axes X,Y,Z, using shim foils (page 62).
Contour block
for 3D Shim block
Nr. AF A x A xB
34768 25 50 x 50 x 65 356
34769 25 50 x 50 x 90 536
34770 25 75 x 75 x 65 866
34771 40 80 x 80 x 104 1.879
34772 40 80 x 80 x 144 2.227
34773 40 120 x 120 x 104 4.871
34774 50 100 x 100 x 130 2.926
34775 50 100 x 100 x 180 5.833
34776 50 150 x 150 x 130 6.900
A- 0 , 0 5
- 0 , 1 5
B-0,3
Nr. A (AF) shift B
89177 25 x,y,z: +/- 1,0 (0,7) 270
89178 40 x,y,z: +/- 1,5 (1,1) 700
89179 50 x,y,z: +/- 2,0 (1,4) 2.200
Other dimensions on request
Contour blocks are without surface protection, also when 3D Shim
block is anodized in different colours
