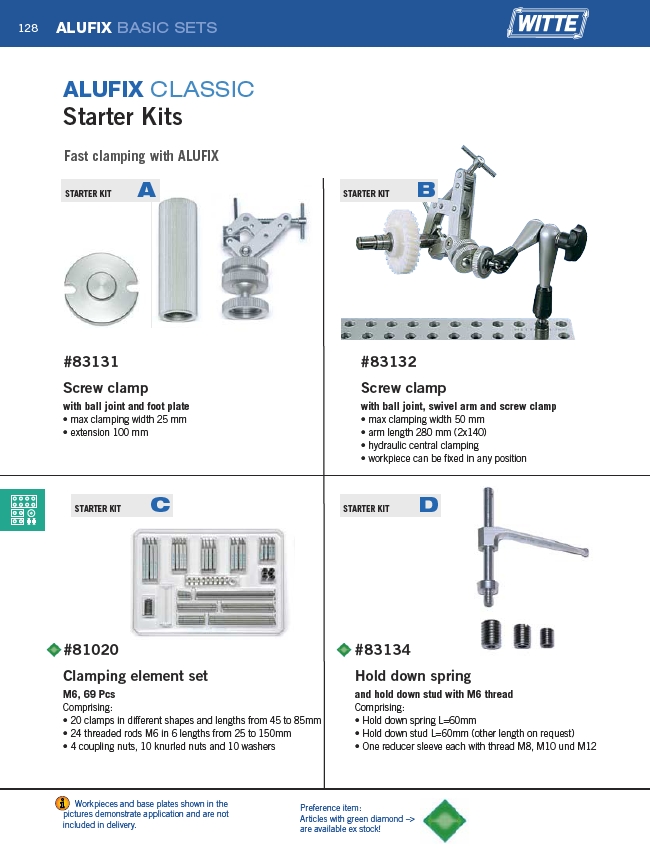

ALUFIX BASIC SETS
ALUFIX CLASSIC
Starter Kits
Fast clamping with ALUFIX
STARTER KIT A STARTER KIT B
#83131
Screw clamp
with ball joint and foot plate
• max clamping width 25 mm
• extension 100 mm
#83132
Screw clamp
with ball joint, swivel arm and screw clamp
• max clamping width 50 mm
• arm length 280 mm (2x140)
• hydraulic central clamping
• workpiece can be fixed in any position
STARTER KIT C STARTER KIT D
#83134
Hold down spring
and hold down stud with M6 thread
Comprising:
• Hold down spring L=60mm
• Hold down stud L=60mm (other length on request)
• One reducer sleeve each with thread M8, M10 und M12
#81020
Clamping element set
M6, 69 Pcs
Comprising:
• 20 clamps in different shapes and lengths from 45 to 85mm
• 24 threaded rods M6 in 6 lengths from 25 to 150mm
• 4 coupling nuts, 10 knurled nuts and 10 washers
Workpieces and base plates shown in the
pictures demonstrate application and are not
included in delivery.
Preference item:
Articles with green diamond –>
are available ex stock!
