196
Nr. System Type For bar A B C D E
93315 AF 40 steerable 80x80 120 165 90 135 10 1.600
93399 AF 40 fixed 80x80 120 165 90 135 10 1.600
92627 AF 40 steerable 120x120 120 165 130 135 10 2.200
92628 AF 40 fixed 120x120 120 165 130 135 10 2.200
92593 AF 50 steerable 100x100 150 165 110 135 10 2.750
92594 AF 50 fixed 100x100 150 165 110 135 10 2.750
��
�� ��
��
������������
Nr. A B C D E
281955 40 11 17 317 353 20.000
��������������
�� �� �� �� �� �� �� �� �� �� �� �� �� ��
����
������������
����
��
��
��������
��������
������

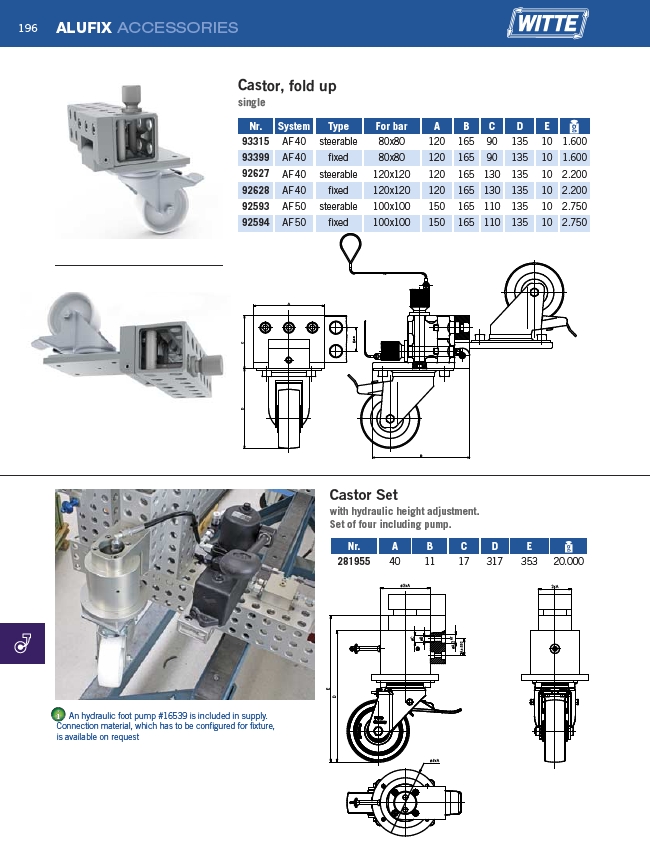

ALUFIX ACCESSORIES
Castor, fold up
single
Castor Set
with hydraulic height adjustment.
Set of four including pump.
i
An hydraulic foot pump #16539 is included in supply.
Connection material, which has to be configured for fixture,
is available on request
