40
3xAjs8
A/2±0,01 A±0,01
Ajs8
B
3xAjs8
A/2±0.01 Ax2±0.01
2xAjs8
Ajs8
A±0.01 A/2±0.01
B
Nr. A (AF) B
20114 16 4,1 20
23233 25 6,8 80
23279 40 10,8 320
28040 50 13,7 625
Nr. A (AF) B
20397 16 4,1 40
23232 25 6,8 160
23280 40 10,8 1.090
28342 50 13,7 1.266
3xAjs8
A±0,01
Ajs8
A/2H7
Nr. A (AF)
81021 25 81
81022 40 347
82764 50 800

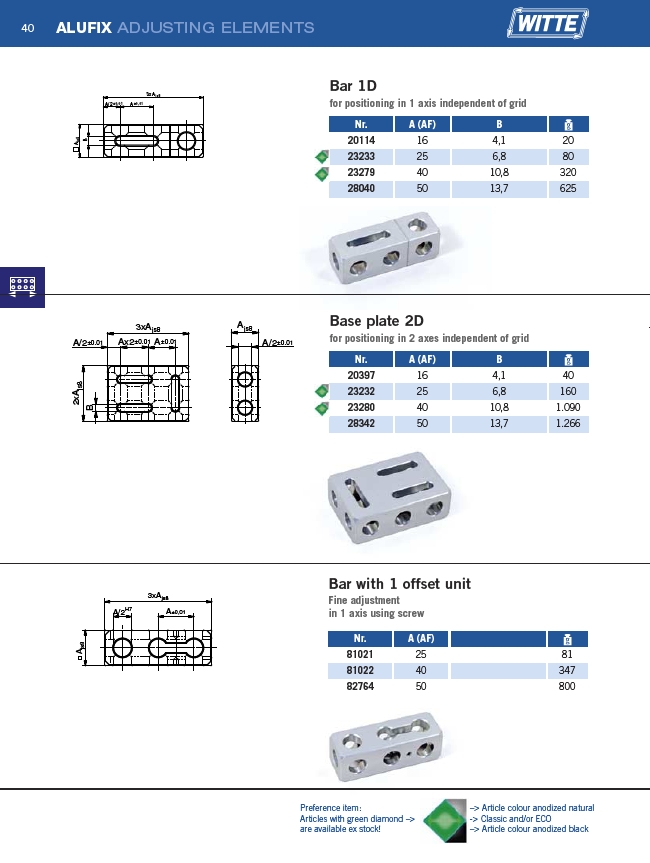

ALUFIX ADJUSTING ELEMENTS
Bar 1D
for positioning in 1 axis independent of grid
Base plate 2D
for positioning in 2 axes independent of grid
Bar with 1 offset unit
Fine adjustment
in 1 axis using screw
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
-> Classic and/or ECO
–> Article colour anodized black
