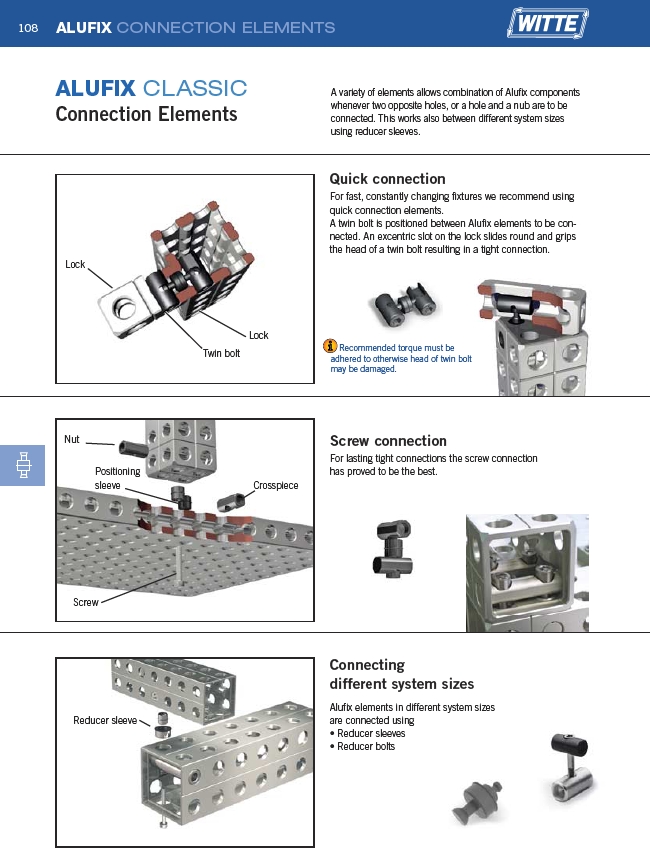

108 ALUFIX CONNECTION ELEMENTS
Recommended torque must be
adhered to otherwise head of twin bolt
may be damaged.
Connecting
different system sizes
Alufix elements in different system sizes
are connected using
• Reducer sleeves
• Reducer bolts
ALUFIX CLASSIC
Connection Elements
A variety of elements allows combination of Alufix components
whenever two opposite holes, or a hole and a nub are to be
connected. This works also between different system sizes
using reducer sleeves.
Quick connection
For fast, constantly changing fixtures we recommend using
quick connection elements.
A twin bolt is positioned between Alufix elements to be connected.
An excentric slot on the lock slides round and grips
the head of a twin bolt resulting in a tight connection.
Screw connection
For lasting tight connections the screw connection
has proved to be the best.
Lock
Reducer sleeve
Twin bolt
Nut
Positioning
sleeve Crosspiece
Screw
Lock
