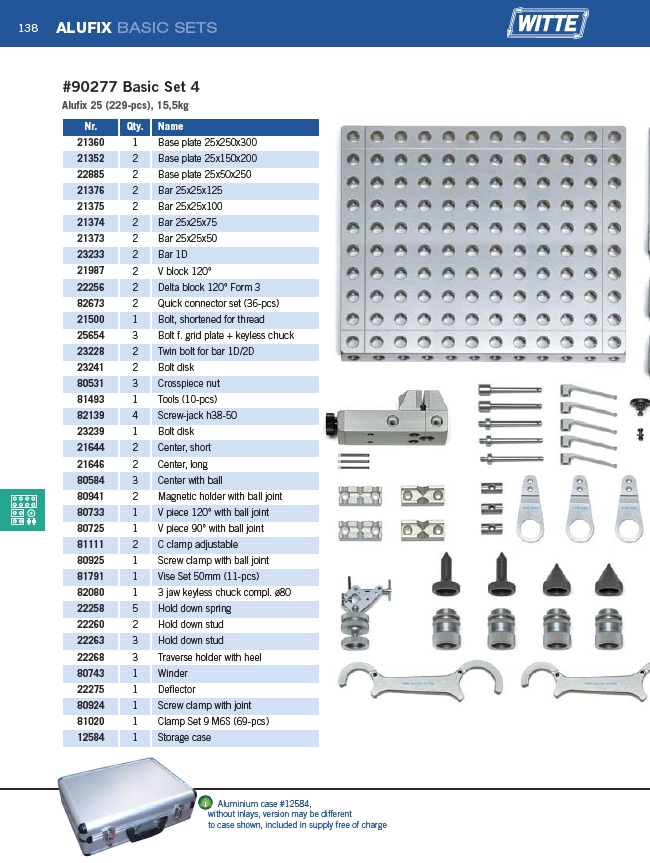

138 ALUFIX BASIC SETS
Aluminium case #12584,
without inlays, version may be different
to case shown, included in supply free of charge
#90277 Basic Set 4
Alufix 25 (229-pcs), 15,5kg
Nr. Qty. Name
21360 1 Base plate 25x250x300
21352 2 Base plate 25x150x200
22885 2 Base plate 25x50x250
21376 2 Bar 25x25x125
21375 2 Bar 25x25x100
21374 2 Bar 25x25x75
21373 2 Bar 25x25x50
23233 2 Bar 1D
21987 2 V block 120°
22256 2 Delta block 120° Form 3
82673 2 Quick connector set (36-pcs)
21500 1 Bolt, shortened for thread
25654 3 Bolt f. grid plate + keyless chuck
23228 2 Twin bolt for bar 1D/2D
23241 2 Bolt disk
80531 3 Crosspiece nut
81493 1 Tools (10-pcs)
82139 4 Screw-jack h38-50
23239 1 Bolt disk
21644 2 Center, short
21646 2 Center, long
80584 3 Center with ball
80941 2 Magnetic holder with ball joint
80733 1 V piece 120° with ball joint
80725 1 V piece 90° with ball joint
81111 2 C clamp adjustable
80925 1 Screw clamp with ball joint
81791 1 Vise Set 50mm (11-pcs)
82080 1 3 jaw keyless chuck compl. ø80
22258 5 Hold down spring
22260 2 Hold down stud
22263 3 Hold down stud
22268 3 Traverse holder with heel
80743 1 Winder
22275 1 Deflector
80924 1 Screw clamp with joint
81020 1 Clamp Set 9 M6S (69-pcs)
12584 1 Storage case
