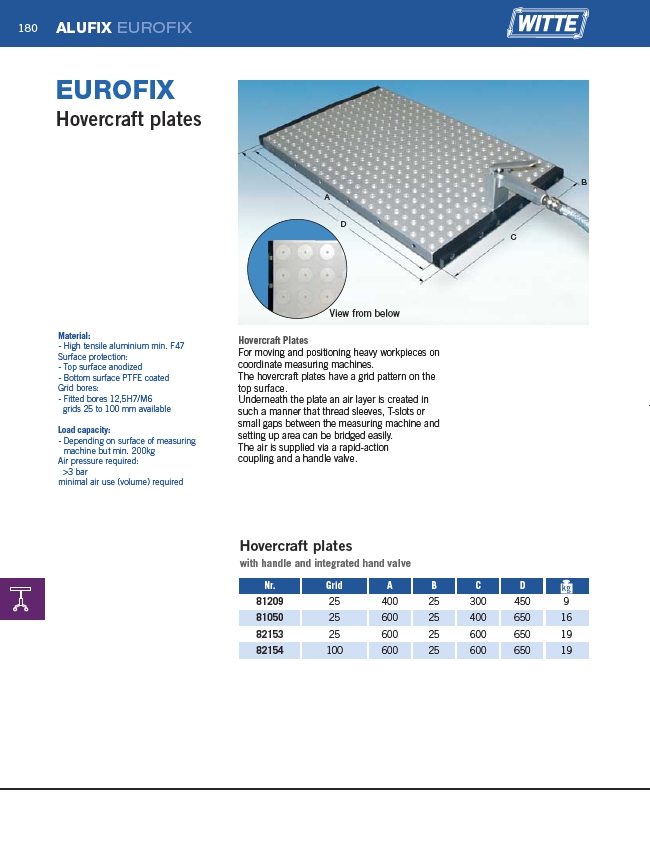

Hovercraft Plates
For moving and positioning heavy workpieces on
coordinate measuring machines.
The hovercraft plates have a grid pattern on the
top surface.
Underneath the plate an air layer is created in
such a manner that thread sleeves, T-slots or
small gaps between the measuring machine and
setting up area can be bridged easily.
The air is supplied via a rapid-action
coupling and a handle valve.
Hovercraft plates
with handle and integrated hand valve
Nr. Grid A B C D
81209 25 400 25 300 450 9
81050 25 600 25 400 650 16
82153 25 600 25 600 650 19
82154 100 600 25 600 650 19
EUROFIX
Hovercraft plates
Material:
- High tensile aluminium min. F47
Surface protection:
- Top surface anodized
- Bottom surface PTFE coated
Grid bores:
- Fitted bores 12,5H7/M6
grids 25 to 100 mm available
Load capacity:
- Depending on surface of measuring
machine but min. 200kg
Air pressure required:
>3 bar
minimal air use (volume) required
