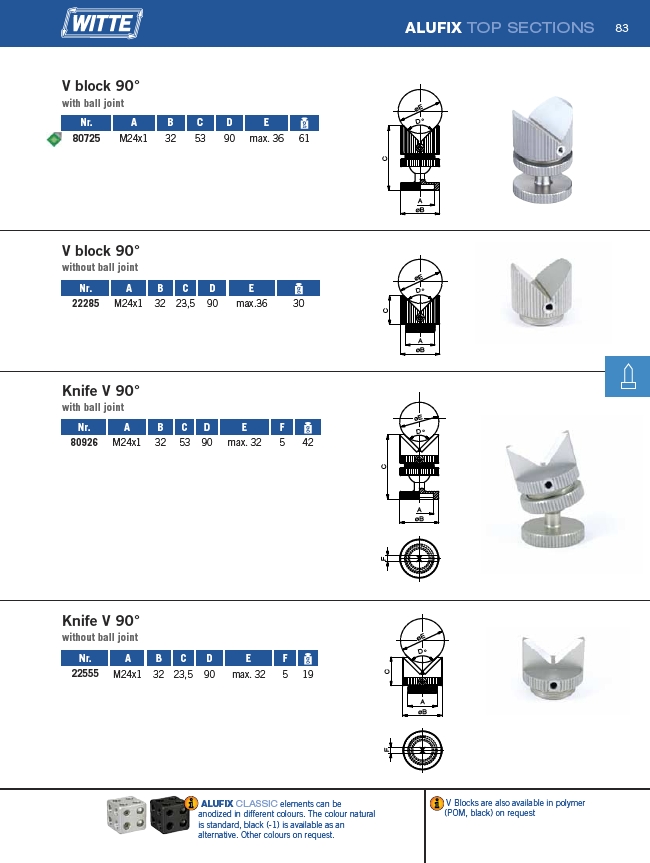

ALUFIX TOP SECTIONS
����
��
����
����
��
����
��
����
����
��
����
����
��
��
����
��
����
��
����
��
����
Nr. A B C D E
80725 M24x1 32 53 90 max. 36 61
V block 90°
without ball joint
Nr. A B C D E
22285 M24x1 32 23,5 90 max.36 30
Nr. A B C D E F
80926 M24x1 32 53 90 max. 32 5 42
Nr. A B C D E F
22555 M24x1 32 23,5 90 max. 32 5 19
V Blocks are also available in polymer
(POM, black) on request
ALUFIX CLASSIC elements can be
anodized in different colours. The colour natural
is standard, black (-1) is available as an
alternative. Other colours on request.
V block 90°
with ball joint
Knife V 90°
with ball joint
Knife V 90°
without ball joint
