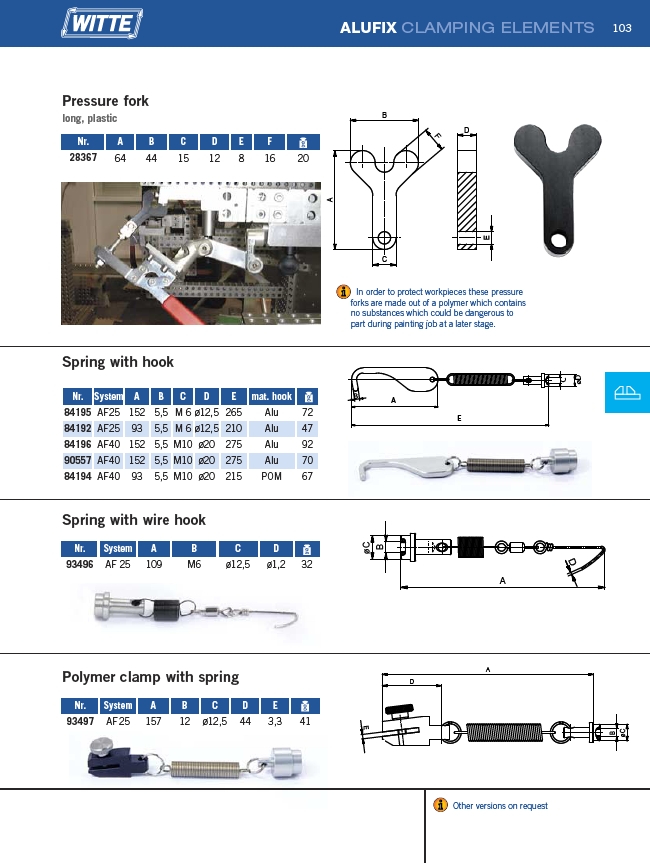

103 Pressure fork long, plastic Spring with hook Nr. System A B C D 93496 AF 25 109 M6 ø12,5 ø1,2 32 Nr. System A B C D E 93497 AF 25 157 12 ø12,5 44 3,3 41 ALUFIX CLAMPING ELEMENTS �� In order to protect workpieces these pressure forks are made out of a polymer which contains no substances which could be dangerous to part during painting job at a later stage. �� A E B C øD �� Nr. A B C D E F 28367 64 44 15 12 8 16 20 �� Other versions on request Nr. System A B C D E mat. hook 84195 AF25 152 5,5 M 6 ø12,5 265 Alu 72 84192 AF25 93 5,5 M 6 ø12,5 210 Alu 47 84196 AF40 152 5,5 M10 ø20 275 Alu 92 90557 AF40 152 5,5 M10 ø20 275 Alu 70 84194 AF40 93 5,5 M10 ø20 215 POM 67 Spring with wire hook Polymer clamp with spring /attachment_hook_w_spring_215-2.prj /art_off_clamp_spring_215.prj /pressure_fork_long.prj /attachment_hook_w_spring_215.prj /attachment_hook_w_spring_215.prj /attachment_hook_w_spring_215.prj /attachment_hook_w_spring_215.prj /attachment_hook_w_spring_215.prj
