AF25: 0 100 175 250 325 400 475 550 625
33
AF 25: 0 125 225 325 425 525 625 725 825
AF 40: 0 200 360 520 680 840 1000 1160 1320
AF 50: 0 250 450 650 950 1050 1250 1500 1650
x
ALUFIX STRUTS
AF 25: 0 100 175 250 325 400 475 550 625
AF 40: 0 160 280 400 520 640 760 880 1000
AF 50: 0 200 350 500 650 800 950 1100 1250 y
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.

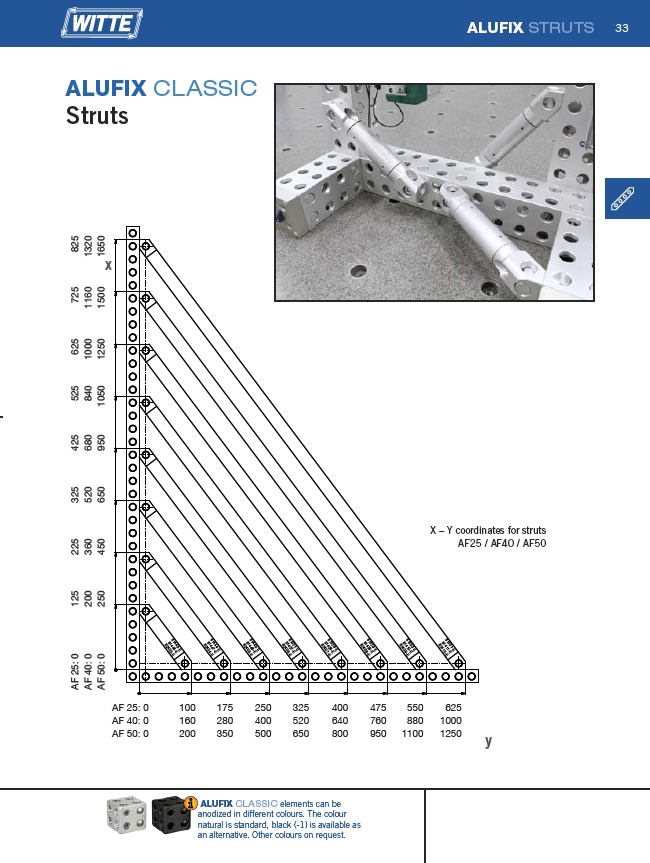

X – Y coordinates for struts
AF25 / AF40 / AF50
ALUFIX CLASSIC
Struts
