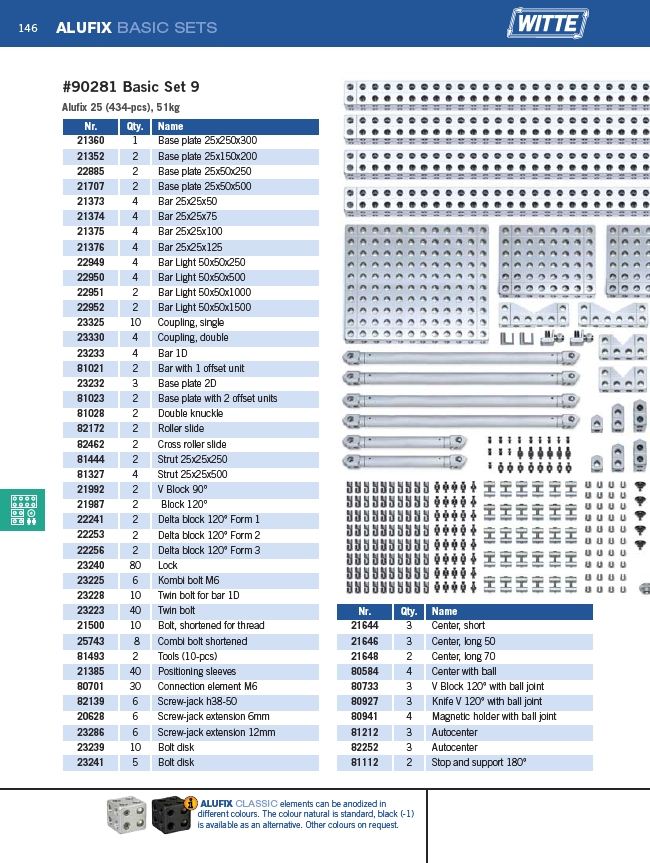

146 ALUFIX BASIC SETS
#90281 Basic Set 9
Alufix 25 (434-pcs), 51kg
Nr. Qty. Name
21360 1 Base plate 25x250x300
21352 2 Base plate 25x150x200
22885 2 Base plate 25x50x250
21707 2 Base plate 25x50x500
21373 4 Bar 25x25x50
21374 4 Bar 25x25x75
21375 4 Bar 25x25x100
21376 4 Bar 25x25x125
22949 4 Bar Light 50x50x250
22950 4 Bar Light 50x50x500
22951 2 Bar Light 50x50x1000
22952 2 Bar Light 50x50x1500
23325 10 Coupling, single
23330 4 Coupling, double
23233 4 Bar 1D
81021 2 Bar with 1 offset unit
23232 3 Base plate 2D
81023 2 Base plate with 2 offset units
81028 2 Double knuckle
82172 2 Roller slide
82462 2 Cross roller slide
81444 2 Strut 25x25x250
81327 4 Strut 25x25x500
21992 2 V Block 90°
21987 2 Block 120°
22241 2 Delta block 120° Form 1
22253 2 Delta block 120° Form 2
22256 2 Delta block 120° Form 3
23240 80 Lock
23225 6 Kombi bolt M6
23228 10 Twin bolt for bar 1D
23223 40 Twin bolt
21500 10 Bolt, shortened for thread
25743 8 Combi bolt shortened
81493 2 Tools (10-pcs)
21385 40 Positioning sleeves
80701 30 Connection element M6
82139 6 Screw-jack h38-50
20628 6 Screw-jack extension 6mm
23286 6 Screw-jack extension 12mm
23239 10 Bolt disk
23241 5 Bolt disk
Nr. Qty. Name
21644 3 Center, short
21646 3 Center, long 50
21648 2 Center, long 70
80584 4 Center with ball
80733 3 V Block 120° with ball joint
80927 3 Knife V 120° with ball joint
80941 4 Magnetic holder with ball joint
81212 3 Autocenter
82252 3 Autocenter
81112 2 Stop and support 180°
ALUFIX CLASSIC elements can be anodized in
different colours. The colour natural is standard, black (-1)
is available as an alternative. Other colours on request.
