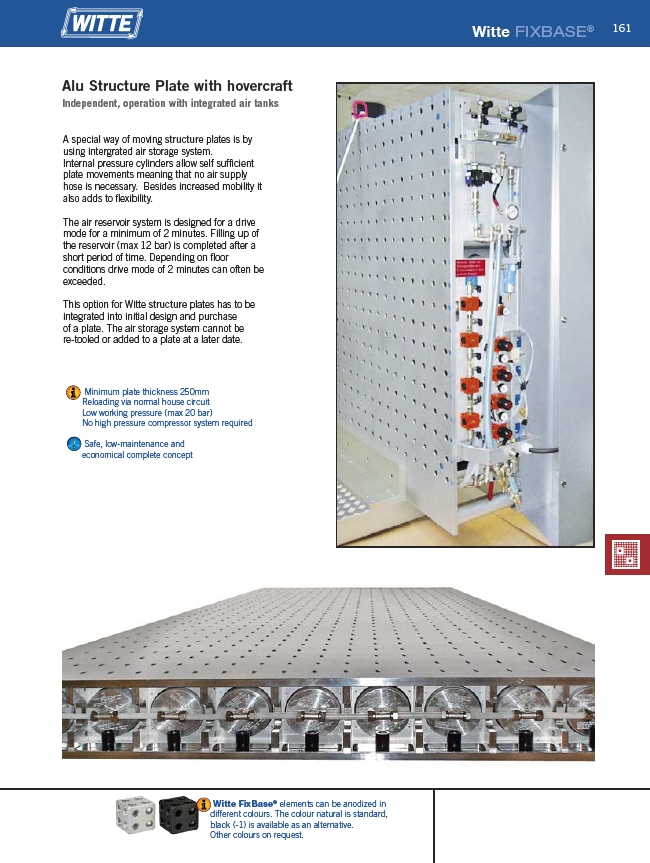

Witte FIXBASE® 161
Alu Structure Plate with hovercraft
Independent, operation with integrated air tanks
A special way of moving structure plates is by
using intergrated air storage system.
Internal pressure cylinders allow self sufficient
plate movements meaning that no air supply
hose is necessary. Besides increased mobility it
also adds to flexibility.
The air reservoir system is designed for a drive
mode for a minimum of 2 minutes. Filling up of
the reservoir (max 12 bar) is completed after a
short period of time. Depending on floor
conditions drive mode of 2 minutes can often be
exceeded.
This option for Witte structure plates has to be
integrated into initial design and purchase
of a plate. The air storage system cannot be
re-tooled or added to a plate at a later date.
Witte FixBase® elements can be anodized in
different colours. The colour natural is standard,
black (-1) is available as an alternative.
Other colours on request.
Accessories such as castors,
eye hooks, angle plates and locating pins
are shown from page 268
Minimum plate thickness 250mm
Reloading via normal house circuit
Low working pressure (max 20 bar)
No high pressure compressor system required
Safe, low-maintenance and
economical complete concept
