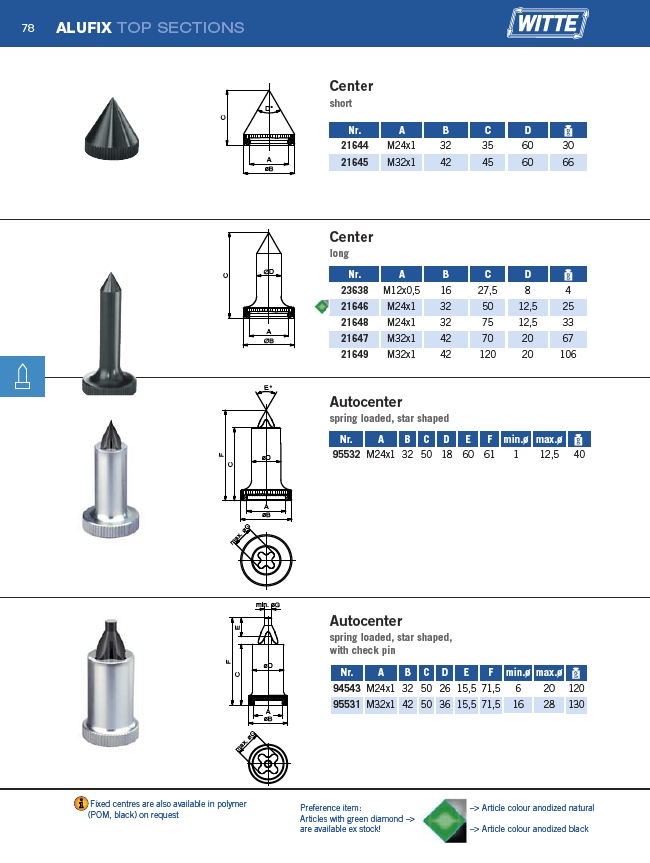

ALUFIX TOP SECTIONS
��
����
��
����
��
����
��
����
����
��
����
��
����
��
�������� ����
�������� ����
����
��
��
����
��
��
������������
Nr. A B C D
21644 M24x1 32 35 60 30
21645 M32x1 42 45 60 66
Nr. A B C D
23638 M12x0,5 16 27,5 8 4
21646 M24x1 32 50 12,5 25
21648 M24x1 32 75 12,5 33
21647 M32x1 42 70 20 67
21649 M32x1 42 120 20 106
Nr. A B C D E F min.ø max.ø
95532 M24x1 32 50 18 60 61 1 12,5 40
Nr. A B C D E F min.ø max.ø
94543 M24x1 32 50 26 15,5 71,5 6 20 120
95531 M32x1 42 50 36 15,5 71,5 16 28 130
Fixed centres are also available in polymer
(POM, black) on request
Center
short
Center
long
Autocenter
spring loaded, star shaped
Autocenter
spring loaded, star shaped,
with check pin
Preference item:
Articles with green diamond –>
are available ex stock!
–> Article colour anodized natural
–> Article colour anodized black
