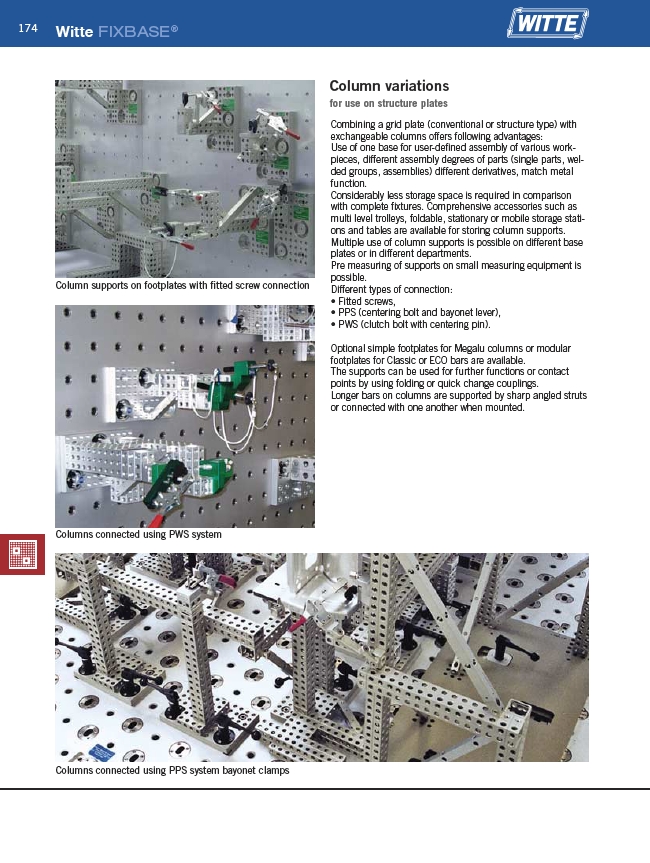

174 Witte FIXBASE®
Column variations
for use on structure plates
Combining a grid plate (conventional or structure type) with
exchangeable columns offers following advantages:
Use of one base for user-defined assembly of various workpieces,
different assembly degrees of parts (single parts, welded
groups, assemblies) different derivatives, match metal
function.
Considerably less storage space is required in comparison
with complete fixtures. Comprehensive accessories such as
multi level trolleys, foldable, stationary or mobile storage stations
and tables are available for storing column supports.
Multiple use of column supports is possible on different base
plates or in different departments.
Pre measuring of supports on small measuring equipment is
possible.
Different types of connection:
• Fitted screws,
• PPS (centering bolt and bayonet lever),
• PWS (clutch bolt with centering pin).
Optional simple footplates for Megalu columns or modular
footplates for Classic or ECO bars are available.
The supports can be used for further functions or contact
points by using folding or quick change couplings.
Longer bars on columns are supported by sharp angled struts
or connected with one another when mounted.
Column supports on footplates with fitted screw connection
Columns connected using PWS system
Columns connected using PPS system bayonet clamps
