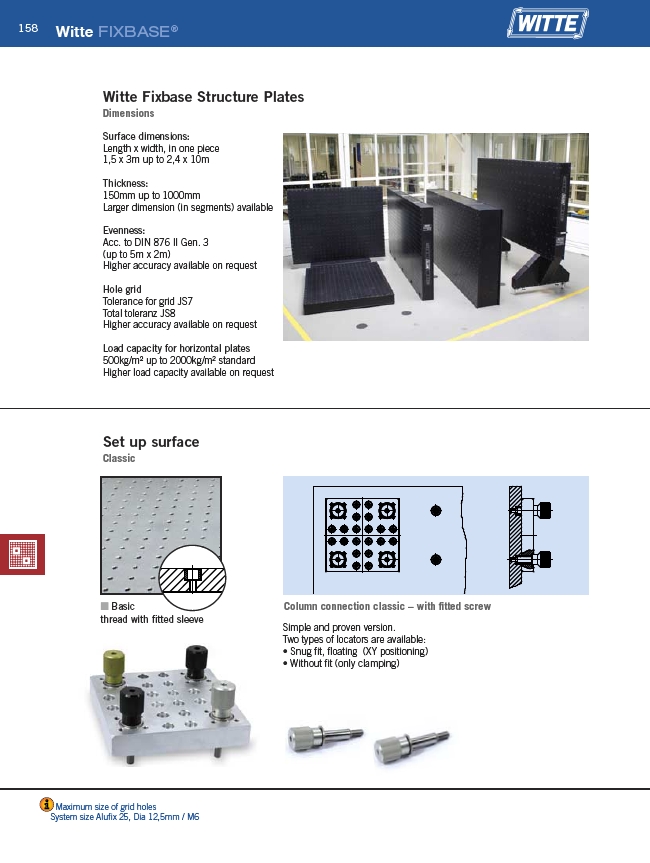

158 Witte FIXBASE®
Witte Fixbase Structure Plates
Dimensions
Surface dimensions:
Length x width, in one piece
1,5 x 3m up to 2,4 x 10m
Thickness:
150mm up to 1000mm
Larger dimension (in segments) available
Evenness:
Acc. to DIN 876 II Gen. 3
(up to 5m x 2m)
Higher accuracy available on request
Hole grid
Tolerance for grid JS7
Total toleranz JS8
Higher accuracy available on request
Load capacity for horizontal plates
500kg/m2 up to 2000kg/m² standard
Higher load capacity available on request
Basic
thread with fitted sleeve
Maximum size of grid holes
System size Alufix 25, Dia 12,5mm / M6
Column connection classic – with fitted screw
Simple and proven version.
Two types of locators are available:
• Snug fit, floating (XY positioning)
• Without fit (only clamping)
Set up surface
Classic
