Alufix 2019/20 EN - Page 212

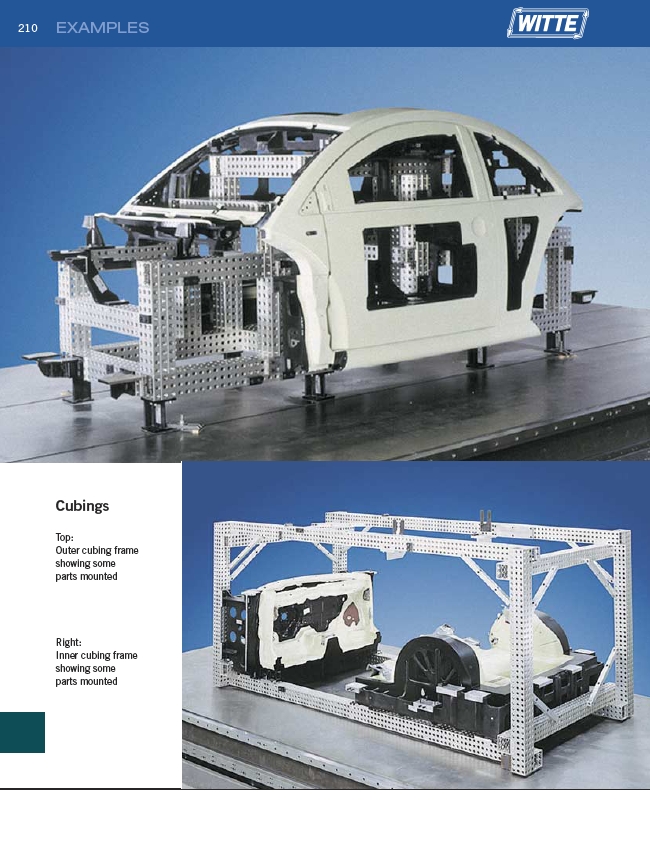

210 EXAMPLES Cubings Top: Outer cubing frame showing some parts mounted Right: Inner cubing frame showing some parts mounted
