45
������������
����
��������
��
������������
��������
������������
������������
����
��������
��
��������
Nr. A B C D E F
56162 25 32 74 12,5 M6 8 123
Nr. A B C D E F
56161 25 48 74 12,5 M6 8 123
ALUFIX ADJUSTING ELEMENTS
Adapter plates also available
including suitable connection elements
D50 – 97893
D80 – 97892
ALUFIX CLASSIC elements can be
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.

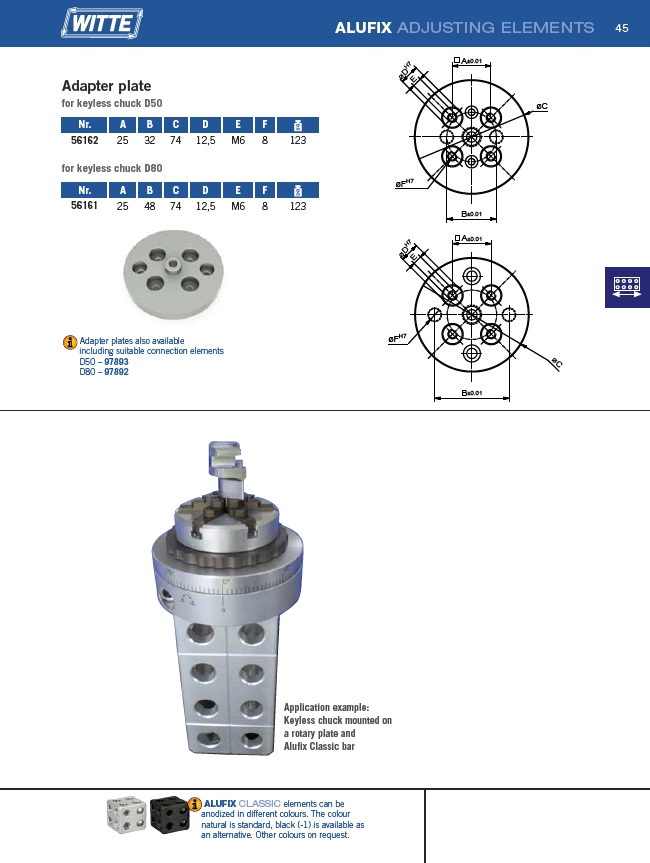

Adapter plate
for keyless chuck D50
for keyless chuck D80
Application example:
Keyless chuck mounted on
a rotary plate and
Alufix Classic bar
