Nr. AF A/min A/max B
82411 16 59 77 6,4 98
82412 25 93 120,5 10 115
82413 40 146,8 192 16 131
82414 50 186 242 19 140
��
��
��
����
��
��
����
������
i
c
c
c
c
Nr. A(AF) B C øD Type
83120 16 18,5 52,5 4,5 left -
84323 16 18,5 52,5 4,5 right -
82711 25 29 80,5 6 left 50
84321 25 29 80,5 6 right 50
82833 40 47 119 8 left 180
84320 40 47 119 8 right 180
83083 50 58 135 12 left 294
84322 50 58 135 12 right 294
Nr. A (AF) B C D Type
92642 25 30,5 82 6 left 240
92643 25 30,5 82 6 right 240
92644 40 49 121 8 left 372
92645 40 49 121 8 right 372
92646 50 61 138 12 left 586
92647 50 61 138 12 right 586

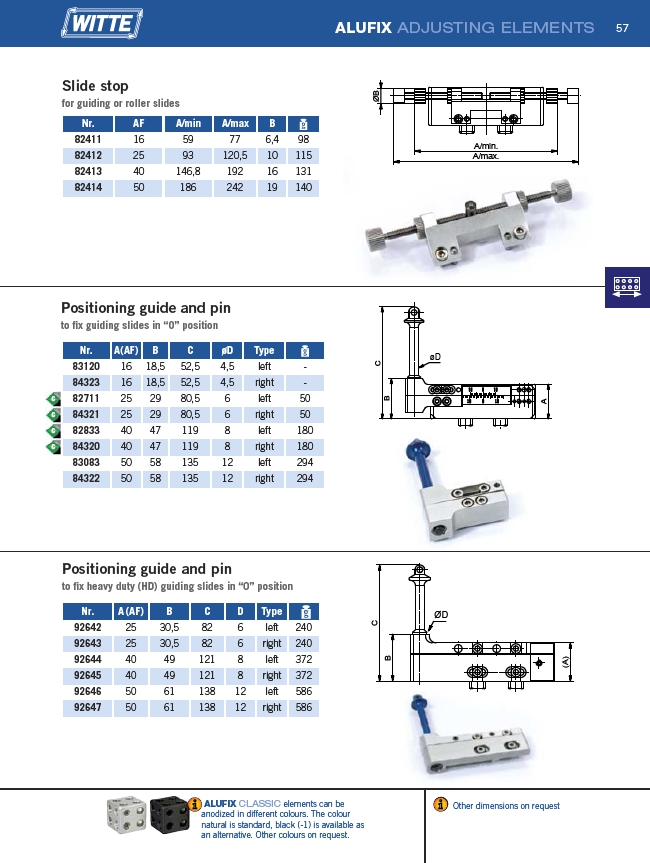

ALUFIX ADJUSTING ELEMENTS
Slide stop
for guiding or roller slides
Positioning guide and pin
to fix guiding slides in “0” position
Positioning guide and pin
to fix heavy duty (HD) guiding slides in “0” position
ALUFIX CLASSIC elements can be Other dimensions on request
anodized in different colours. The colour
natural is standard, black (-1) is available as
an alternative. Other colours on request.
